SNOW THROWER 50 cm(from s/n 168897 from 1990)

Parts list

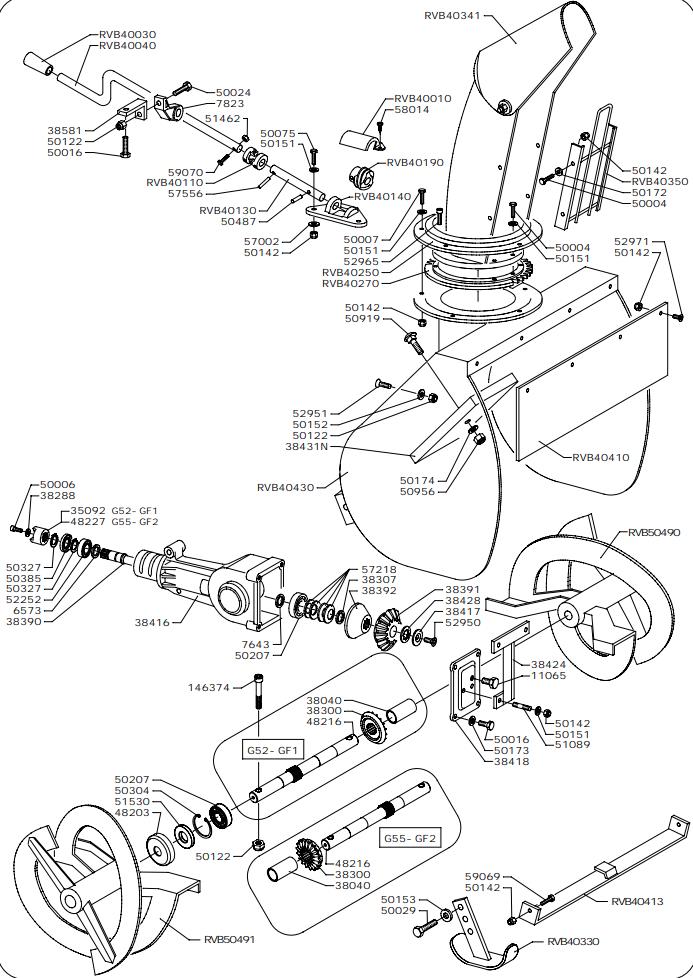

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1106511065MALE HEXAGONAL PLUG£5.09 Add to
146374146374SCREW£3.67 Add to
3509235092COUPLING£37.62 Add to
3804038040SPACER£6.83 Add to
3830038300RING GEAR£99.80 Add to
3830738307RING£3.43 Add to
3839038390SHAFT£116.11 Add to
3839138391RING GEAR£110.70 Add to
3839238392RING GEAR£194.38 Add to
3841638416GEARBOX£135.78 Add to
3841738417WASHER£6.06 Add to
3841838418COVER£24.52 Add to
3842838428RING£7.92 Add to
4820348203COVER£11.55 Add to
4821648216SHAFT£55.19 Add to
4822748227COUPLING£30.34 Add to
5000450004SCREW£1.36 Add to
5000650006SCREW£1.42 Add to
5000750007SCREW£1.50 Add to
5001650016SCREW£18.80 Add to
5002450024SCREW£1.46 Add to
5002950029SCREW£1.61 Add to
5007550075SCREW£1.42 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5020750207BEARING£8.85 Add to
5030450304CIRCLIP£2.09 Add to
5032750327CIRCLIP£1.40 Add to
5038550385SEAL RING£4.33 Add to
5095650956NUT£1.47 Add to
5108951089SLEEVE BEARING (OUTBOARD) .75 X 1.575 X .625N/A POA
5146251462NUT£1.34 Add to
5153051530SEAL RING£5.33 Add to
5225252252BEARING£15.66 Add to
5295052950SCREW£1.76 Add to
5295152951SCREW£1.80 Add to
5296552965SCREW£1.44 Add to
5297152971SCREW£1.36 Add to
5700257002WASHER£1.36 Add to
5721857218BELLEVILLE SPRING£1.48 Add to
5906959069SCREW£0.39 Add to
65736573SPACER£2.70 Add to
76437643SPACER£2.71 Add to
78237823SUPPORT£3.08 Add to
RVB40110RVB40110ARTICULATION£40.44 Add to
