  • REAR WHEEL AXLE EFFECTIVE FROM SERIAL NO. 549472 (from sn 549472 to sn 591341 from 2011 to 2015)

REAR WHEEL AXLE EFFECTIVE FROM SERIAL NO. 549472 (from sn 549472 to sn 591341 from 2011 to 2015)

Parts list

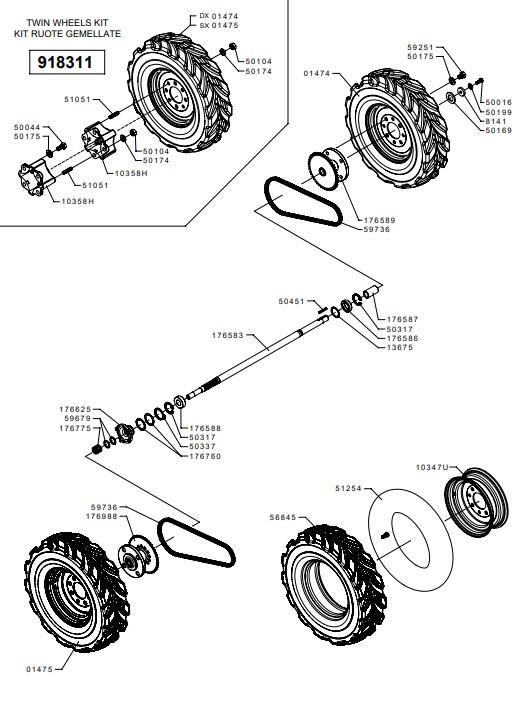

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0147401474RIGHT WHEEL CL75£138.81 Add to
0147501475RUBBER WHEEL£138.81 Add to
10347U10347URIM£56.23 Add to
176583176583WHEEL AXLE SHAFT CL75£124.40 Add to
176586176586SPACER£7.72 Add to
176587176587SPACER£7.04 Add to
176588176588SPACER£11.73 Add to
176625176625COUPLING£50.64 Add to
176760176760WASHER£6.55 Add to
176775176775SPRING£5.13 Add to
176988176988WHEEL HUB£120.37 Add to
5001650016SCREW£18.80 Add to
5004450044SCREW£1.90 Add to
5010450104NUT£1.44 Add to
5016950169WASHER£1.66 Add to
5017450174WASHER£1.50 Add to
5017550175WASHER£1.42 Add to
5019950199WASHER£1.58 Add to
5031750317CIRCLIP£1.97 Add to
5033750337CIRCLIP£1.95 Add to
5045150451FEATHER KEY 5X 5X35 UNI 6604£2.44 Add to
5105151051STUD£3.02 Add to
5125451254INNERTUBE£14.11 Add to
5587755877SPACER£3.04 Add to
5684556845TYRE£71.00 Add to
5925159251SCREW£1.71 Add to
5967959679SPACER£6.44 Add to
5973659736CHAIN P9,52 R6,35 06B1 90M CH£14.60 Add to
81418141WASHER£3.84 Add to
