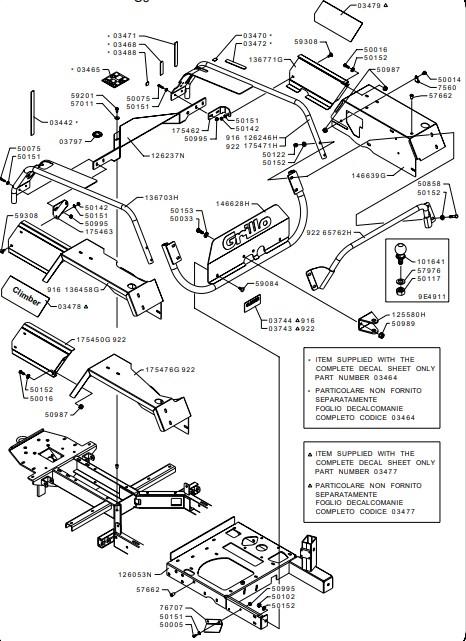

REAR FRAME (from sn 385501 from 2007)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0346403464STICKER£30.77 Add to
0347703477STICKER£56.44 Add to
0379703797STICKER£3.62 Add to
101641101641BALL£44.02 Add to
125580H125580HHOOK£18.56 Add to
126237N126237NGUARD£99.04 Add to
136458G136458GFENDER£149.90 Add to
136703H136703HHANDLE£65.84 Add to
136771G136771GCOWLING DOOR£33.29 Add to
146628H146628HBUMPER£113.14 Add to
175450G175450GCOWLING DOOR£33.29 Add to
175462175462BRACKET£7.42 Add to
175463175463BRACKET£11.53 Add to
175471H175471HRIGHT HANDLE£58.48 Add to
175476G175476GFENDER£95.22 Add to
195987195987FENDER£131.51 Add to
195992195992FRAME£260.45 Add to
5000550005SHAFT -INPUT£1.53 Add to
5001450014SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5003350033SCREW£1.66 Add to
5007550075SCREW£1.42 Add to
5010250102NUT£1.36 Add to
5011750117NUT£1.64 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5085850858SCREW£1.71 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5099550995NUT£1.32 Add to
5701157011WASHER£1.30 Add to
5766257662THREADED INSERT£1.89 Add to
5797657976WASHER£0.86 Add to
5908459084SCREW£1.69 Add to
5920159201SCREW£1.39 Add to
5930859308SCREW£1.92 Add to
65762H65762HMUFFLER PROTECTION£82.62 Add to
75607560FAIRLEAD£5.61 Add to
7670776707SMALL PLATE£6.54 Add to
