QUICK COUPLING(from s/n 102801 from 1984)

Parts list

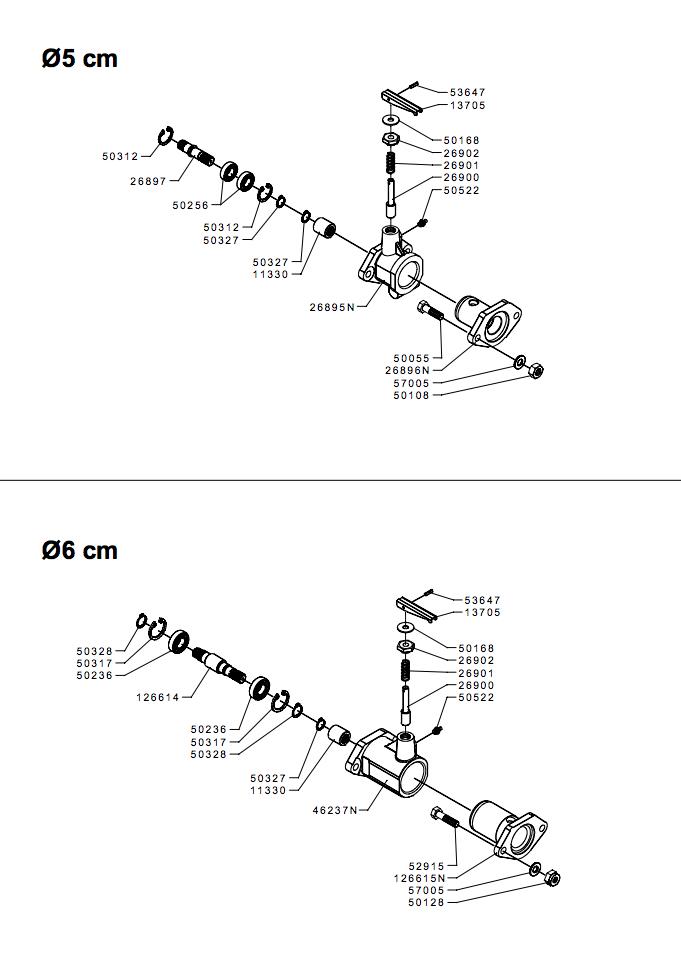

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1133011330BUSHING£21.99 Add to
126614126614SHAFT£49.69 Add to
126615N126615NFLANGE CONNECTION£83.83 Add to
1370513705LEVER£7.55 Add to
26895N26895NSLEEVE£132.30 Add to
26896N26896NFLANGE CONNECTION£111.18 Add to
2689726897SHAFT£53.61 Add to
2690026900PIN£22.62 Add to
2690126901SPRING£4.42 Add to
2690226902SCREW£7.40 Add to
46237N46237NCONNECTION£158.91 Add to
5005550055SCREW£2.26 Add to
5010850108NUT£1.71 Add to
5012850128NUT£1.58 Add to
5016850168WASHER£1.45 Add to
5023650236BEARING£14.72 Add to
5025650256BEARING£9.83 Add to
5031250312CIRCLIP£1.71 Add to
5031750317CIRCLIP£1.97 Add to
5032750327CIRCLIP£1.40 Add to
5032850328CIRCLIP£1.44 Add to
5052250522FITTING£2.27 Add to
5291552915SCREW£1.99 Add to
5364753647SPRING PIN£1.34 Add to
5700557005WASHER£1.60 Add to
