  • PEDALS UNIT WITH FRONT BRAKE (from sn 600586 to sn 667585 from 2015 to 2018)

PEDALS UNIT WITH FRONT BRAKE (from sn 600586 to sn 667585 from 2015 to 2018)

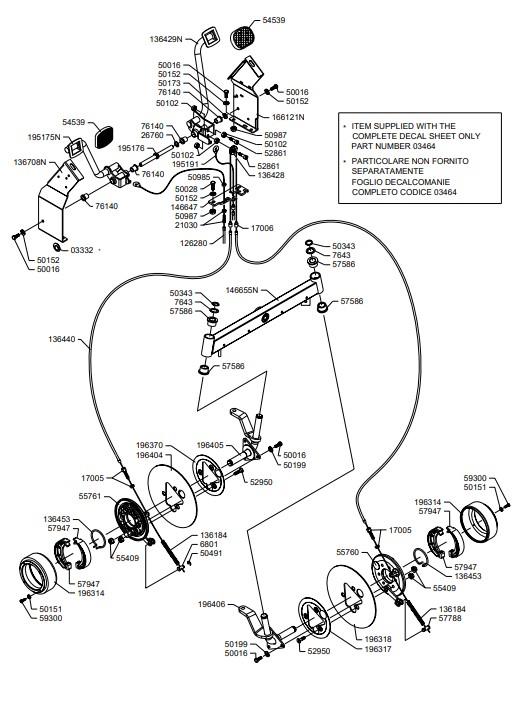

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0346403464STICKER£30.77 Add to
126280126280WIRE£6.33 Add to
136184136184SPRING£4.47 Add to
136428136428PULLEY£8.59 Add to
136429N136429NPEDAL£53.74 Add to
136440136440WIRE£9.71 Add to
136453136453SPRING£5.25 Add to
136708N136708NBRACKET£39.14 Add to
146647146647BRACKET£9.95 Add to
146655N146655NAXLE£158.94 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
195175N195175NPEDAL£67.80 Add to
195176195176SHAFT£28.56 Add to
195191195191WIRE£7.46 Add to
196317196317GUARD£12.70 Add to
196318196318HUB GUM PROTECTION£23.42 Add to
196370196370GUARD£12.70 Add to
196404196404HUB GUM PROTECTION£23.42 Add to
196405196405LEFT SPINDLE£54.90 Add to
196406196406RIGHT SPINDLE£54.90 Add to
2676026760SPACER£2.87 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5019950199WASHER£1.58 Add to
5034350343CIRCLIP£1.42 Add to
5049150491RING SNAP£1.44 Add to
5098550985NUT£1.30 Add to
5098750987NUT£2.72 Add to
5286152861SCREW£1.59 Add to
5295052950SCREW£1.76 Add to
5453954539DUST CAP£14.01 Add to
5540955409NUT£1.58 Add to
5576055760BRAKES GROUP BLOCKHOLDER£101.29 Add to
5576155761BRAKES GROUP BLOCKHOLDER£101.29 Add to
5758657586BUSHING£4.01 Add to
5778857788CLAMP£3.39 Add to
5794757947BRAKE£18.37 Add to
5930059300SCREW£1.49 Add to
68016801CONNECTION£9.59 Add to
7614076140NYLON BUSHING£6.83 Add to
76437643SPACER£2.71 Add to
