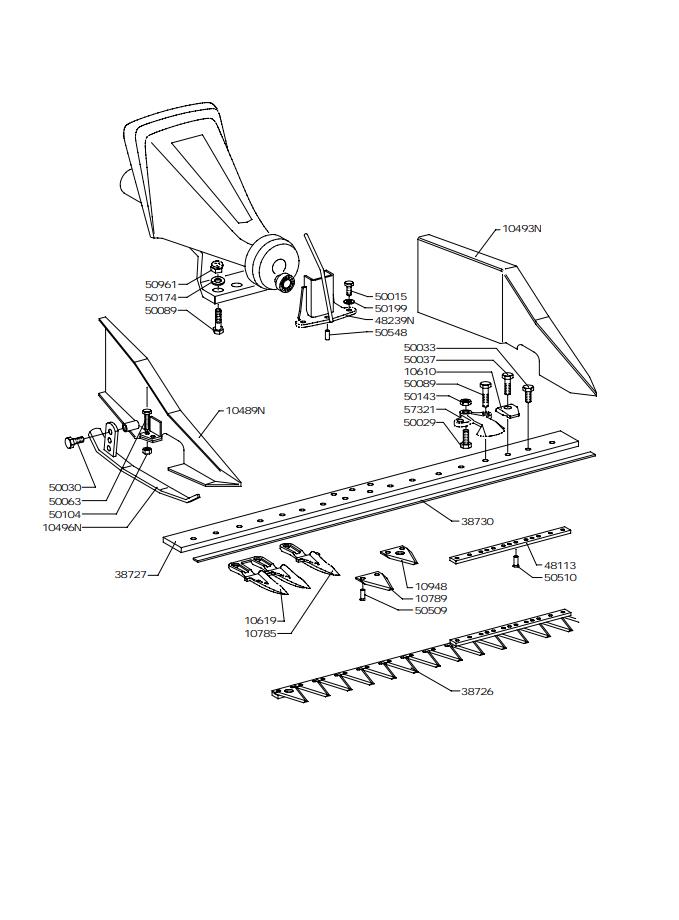

MIDDLE FINGER CENTRAL CUTTER BAR 80 cm(from s/n 166897 from 1990)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
10489N10489NSHOE RIGHT£48.27 Add to
10493N10493NSHOE LIFT£48.27 Add to
1061010610HOLDER STRIP£4.28 Add to
1061910619TOOTH DOUBLE MEDIUM THICK£29.07 Add to
1078510785TOOTH£24.78 Add to
1078910789SECTION SCORED BLADE£5.14 Add to
1094810948EXTERNAL THROTTLE COVER£14.42 Add to
3872638726CUTTING BLADE£91.40 Add to
48239N48239NCONNECTION£63.12 Add to
5001550015SCREW£1.44 Add to
5002950029SCREW£1.61 Add to
5003050030SCREW£1.64 Add to
5003350033SCREW£1.66 Add to
5003750037SCREW£1.76 Add to
5006350063SCREW£1.61 Add to
5008950089SCREW£1.85 Add to
5010450104NUT£1.44 Add to
5014350143NUT£1.44 Add to
5017450174WASHER£1.50 Add to
5019950199WASHER£1.58 Add to
5050950509RIVET£1.37 Add to
5054850548PIN£0.85 Add to
5096150961NUT£1.61 Add to
5732157321HOLD-DOWN CLIP£23.12 Add to
