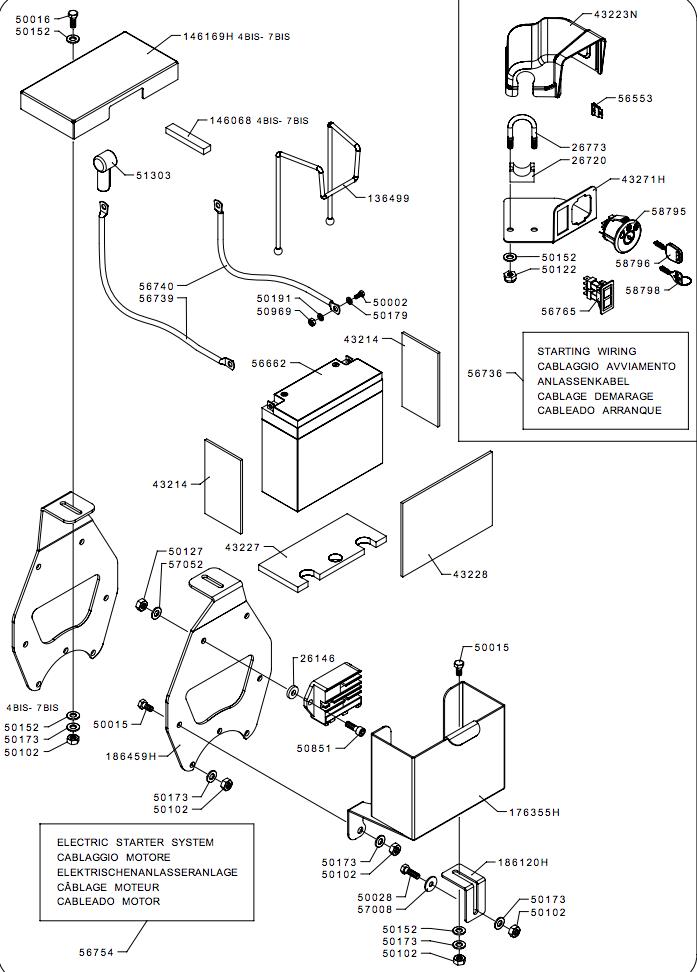

LOMBARDINI 15LD350-440 ELECTRIC STARTER(from s/n 634320 to s/n 684581 from 2017 to 2020)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136499136499RUBBER BAND£6.12 Add to
146169H146169HGUARD£16.07 Add to
176355H176355HBATTERY BOX£38.59 Add to
186459H186459HSUPPORT£32.37 Add to
2614626146WASHER£3.64 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
4321443214INSULATOR£4.38 Add to
43223N43223NBOX£8.56 Add to
4322743227INSULATOR£5.43 Add to
4322843228INSULATOR£5.43 Add to
43271H43271HSUPPORT£10.03 Add to
5000250002SCREW£1.37 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5012750127NUT£1.36 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017950179WASHER£1.30 Add to
5085150851SCREW£1.58 Add to
5096950969NUT£1.30 Add to
5130351303INSULATING CAP£2.81 Add to
5655356553FUSE£2.48 Add to
5666256662DRY BATTERY£128.27 Add to
5673656736HARNESS, WIRING£62.80 Add to
5673956739CABLES BATTERY BOOSTER£20.56 Add to
5674056740CABLES BATTERY BOOSTER£18.77 Add to
5675456754HARNESS, WIRING£33.20 Add to
5676556765WARNING LIGHT£11.55 Add to
5700857008WASHER£1.35 Add to
5879558795IGNITION SWITCH£27.18 Add to
5879658796IGNITION KEY£8.56 Add to
5879858798IGNITION KEY£6.12 Add to
