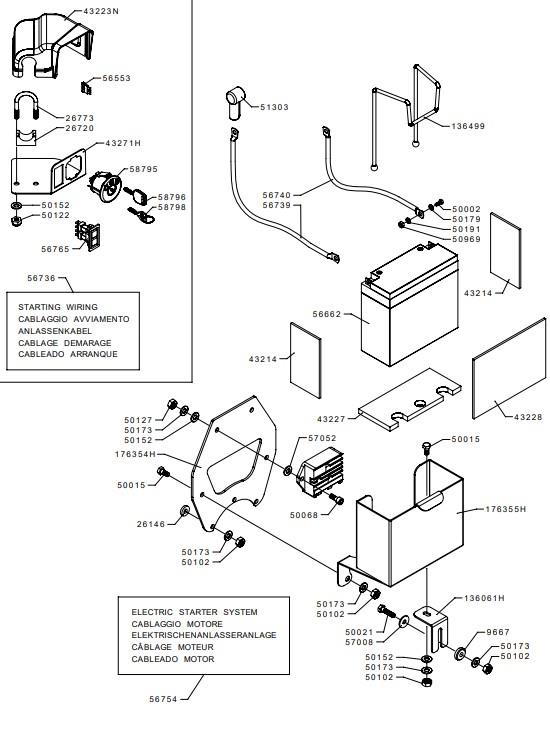

LOMBARDINI 15LD225 ELECTRIC STARTER (from sn 211395 from 1996)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136499136499RUBBER BAND£6.12 Add to
176355U176355UBATTERY BOX£60.31 Add to
186120H186120HSUPPORT£7.84 Add to
2614626146WASHER£3.64 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
295470295470IGNITION KEY£9.77 Add to
4321443214INSULATOR£4.38 Add to
43223N43223NBOX£8.56 Add to
4322743227INSULATOR£5.43 Add to
4322843228INSULATOR£5.43 Add to
43271N43271NSUPPORT£14.89 Add to
5000250002SCREW£1.37 Add to
5001550015SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5006850068SCREW£1.52 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5012750127NUT£1.36 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017950179WASHER£1.30 Add to
5096950969NUT£1.30 Add to
5130350969NUT£1.30 Add to
5655356553FUSE£2.48 Add to
5666256662DRY BATTERY£128.27 Add to
5673656736HARNESS, WIRING£62.80 Add to
5673956739CABLES BATTERY BOOSTER£20.56 Add to
5674056740CABLES BATTERY BOOSTER£18.77 Add to
5675456754HARNESS, WIRING£33.20 Add to
5676556765WARNING LIGHT£11.55 Add to
5700857008WASHER£1.35 Add to
5879558795IGNITION SWITCH£27.18 Add to
5879858798IGNITION KEY£6.12 Add to
96679667WASHER£2.29 Add to
