KAWASAKI ENGINE TRANSMISSION (from sn 656193 to sn 730758 from 2018 to 2022)

Parts list

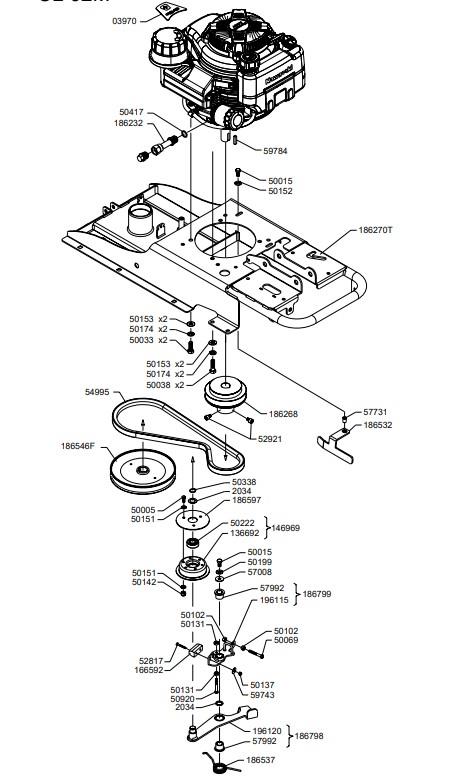

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0397003970STICKER£4.31 Add to
146969146969GUIDE PULLEY£19.13 Add to
166592166592BLADE BRAKE 2AV CLS7/CL75£18.77 Add to
186232186232EXTENSION£24.08 Add to
186268186268PULLEY£120.32 Add to
186532186532BRACKET£8.59 Add to
186537186537SPRING£16.12 Add to
186546F186546FPULLEY£66.29 Add to
186597186597PLATE£4.50 Add to
186798186798SUPPORT£54.14 Add to
186799186799SUPPORT£31.46 Add to
20342034SPACER£3.02 Add to
5000550005SHAFT -INPUT£1.53 Add to
5001550015SCREW£1.44 Add to
5003350033SCREW£1.66 Add to
5003850038SCREW£1.76 Add to
5006950069SCREW£1.59 Add to
5010250102NUT£1.36 Add to
5013150131NUT£1.32 Add to
5013750137NUT£1.30 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5019950199WASHER£1.58 Add to
5022250222BEARING£8.85 Add to
5033850338CIRCLIP£1.42 Add to
5041750417O-RING£1.59 Add to
5092050920SCREW£1.45 Add to
5281752817SCREW£1.32 Add to
5292152921SCREW£1.69 Add to
5499554995BELT£67.23 Add to
5700857008WASHER£1.35 Add to
5773157731THREADED INSERT£1.86 Add to
5799257992BUSHING£4.56 Add to
5974359743BELLEVILLE SPRING£0.15 Add to
5978459784FEATHER KEY£3.77 Add to
