INTEK 22HP HYDRAULIC EQUIPMENT (from sn 586075 to sn 586081 from 2014 to 2014)

Parts list

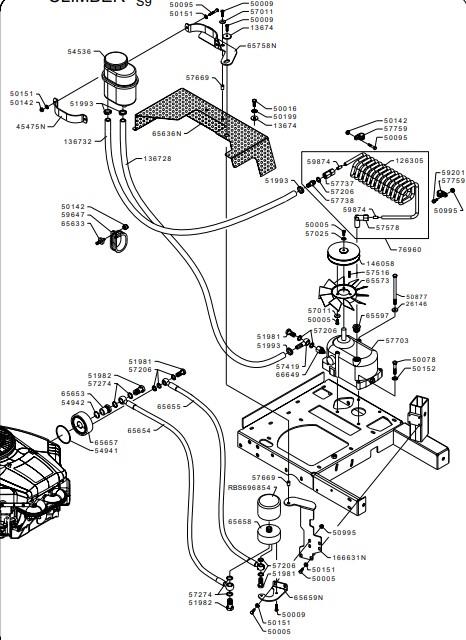

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
136728136728PIPE£8.73 Add to
136732136732OIL PIPE 1/2 X 340£7.03 Add to
1367413674WASHER£3.43 Add to
146058146058HYDR ENGINE PULLEY CLS9£64.23 Add to
2614626146WASHER£3.64 Add to
45475N45475NCLAMP£6.94 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5007850078SCREW£1.69 Add to
5009550095SCREW£1.42 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5087750877SCREW£2.58 Add to
5099550995NUT£1.32 Add to
5198151981HOLLON SCREW£4.45 Add to
5198251982HOLLON SCREW£5.36 Add to
5199351993CLAMP£2.66 Add to
5453654536TANK£74.59 Add to
5494154941O-RING£1.59 Add to
5494254942O-RING£1.34 Add to
5701157011WASHER£1.30 Add to
5702557025WASHER£1.34 Add to
5720657206WASHER£1.44 Add to
5727457274WASHER£1.47 Add to
5741957419EYE JOINT£7.82 Add to
5751657516FEATHER KEY£1.10 Add to
5766957669THREADED INSERT£1.64 Add to
5770357703TRANSMISSION£1,419.28 Add to
5773857738RUBBER HOLDER£4.16 Add to
5775957759CLAMP£4.01 Add to
5920159201SCREW£1.39 Add to
5964759647CLAMP£4.22 Add to
5987459874BUSHING£1.90 Add to
6557365573BLOWER£34.79 Add to
6559765597PIPE REDUCTION£11.97 Add to
65636N65636NPROTECTION GRID£67.60 Add to
6565365653PIPE REDUCTION£13.72 Add to
6565465654HYDRAULIC HOSE£29.47 Add to
6565565655HYDRAULIC HOSE£26.45 Add to
6565765657FLANGE£46.23 Add to
6565865658FLANGE£53.13 Add to
65659N65659NBRACKET£9.27 Add to
65758N65758NSUPPORT£20.71 Add to
6664966649CONNECTION£10.67 Add to
7696076960COOLING PART£155.21 Add to
RBS696854RBS696854OIL FILTER£51.19 Add to
