HYDRAULIC EQUIPMENT(from s/n 682315 from 2019)

Parts list

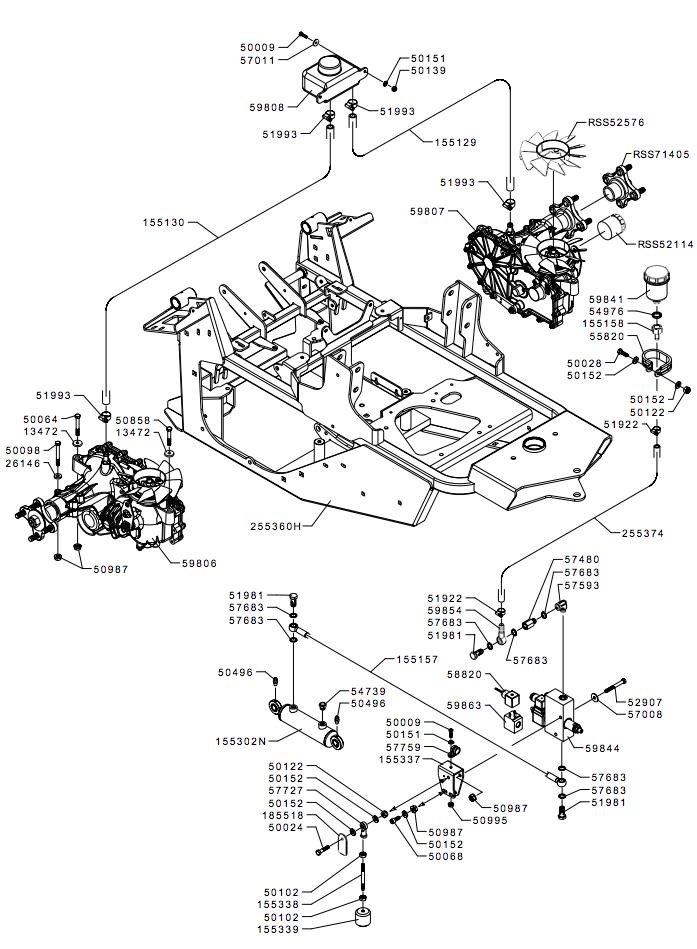

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1347213472WASHER£3.19 Add to
155129155129PIPE£4.73 Add to
155130155130PIPE£6.79 Add to
155157155157HYDRAULIC HOSE£28.22 Add to
155158155158RUBBER HOLDER£17.69 Add to
155302N155302NCYLINDER£257.19 Add to
155337155337SUPPORT£20.30 Add to
155338155338ROD£11.29 Add to
155339155339ROCKER£20.30 Add to
185518185518SUPPORT£4.38 Add to
2614626146WASHER£3.64 Add to
5000950009SCREW£1.42 Add to
5002450024SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5006450064SCREW£1.85 Add to
5009850098SCREW£1.97 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5049650496FITTING£1.90 Add to
5085850858SCREW£1.71 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5192251922CLAMP£2.99 Add to
5198151981HOLLON SCREW£4.45 Add to
5199351993CLAMP£2.66 Add to
5290752907SCREW£1.76 Add to
5473954739BREATHER CAP£5.90 Add to
5497654976RUBBER WASHER£2.68 Add to
5582055820CLAMP£4.26 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5748057480MALE-FEMALE EXTENSION ADAPTOR£5.46 Add to
5759357593ADAPTOR 90°£17.50 Add to
5768357683WASHER£1.47 Add to
5772757727CYLINDER HEAD£23.47 Add to
5775957759CLAMP£4.01 Add to
5882058820CONNECTOR£39.40 Add to
5980659806AXLE£1,559.72 Add to
5980759807AXLE£1,559.72 Add to
5980859808OIL-RESERVOIR£62.82 Add to
5984159841TANK£34.99 Add to
5984459844BLOCK£459.56 Add to
5985459854EYE JOINT£9.05 Add to
5986359863SOLENOID£43.62 Add to
RSS52114RSS52114OIL FILTER£73.28 Add to
RSS52576RSS52576BLOWER£80.05 Add to
RSS71405RSS71405WHEEL HUB£161.66 Add to
