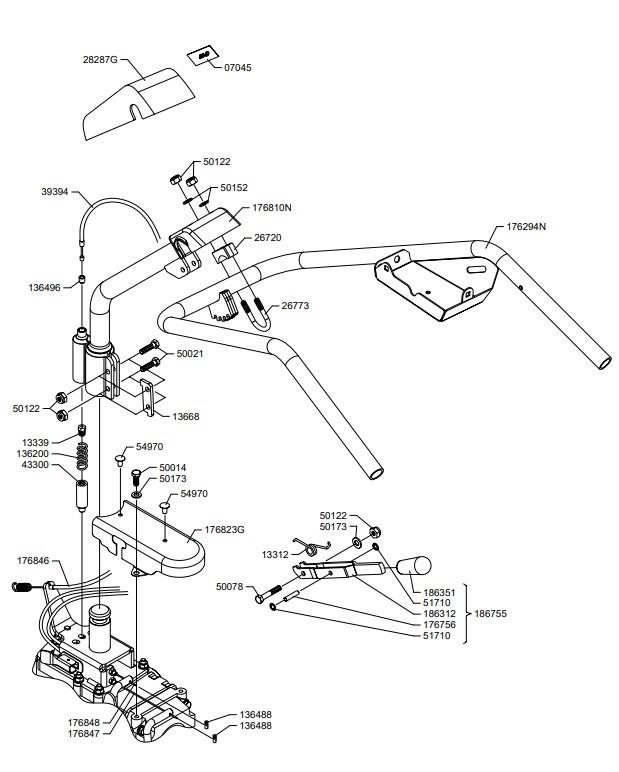

HANDLEBAR (from sn 599726 to sn 710101 from 2015 to 2021)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0704507045STICKER£3.05 Add to
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
136200136200SPRING£3.12 Add to
136488136488CLAMP£3.75 Add to
136496136496BOOT£2.53 Add to
1366813668SMALL PLATE£5.34 Add to
176294N176294NHANDLEBAR£108.83 Add to
176756176756PIN£3.23 Add to
176810N176810NSTEERING COLUMN£104.54 Add to
176823G176823GCOVER£13.48 Add to
176847176847WIRE£10.45 Add to
176848176848WIRE£10.37 Add to
186312186312LEVER£19.85 Add to
186351186351KNOB£4.51 Add to
186755186755HANDLE£25.21 Add to
206227206227WIRE£74.34 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
28287G28287GGUARD£28.80 Add to
3939439394WIRE£6.60 Add to
4330043300ROD£5.23 Add to
5001450014SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5007850078SCREW£1.69 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5171051710RING£1.44 Add to
5497054970RIVET£1.58 Add to
