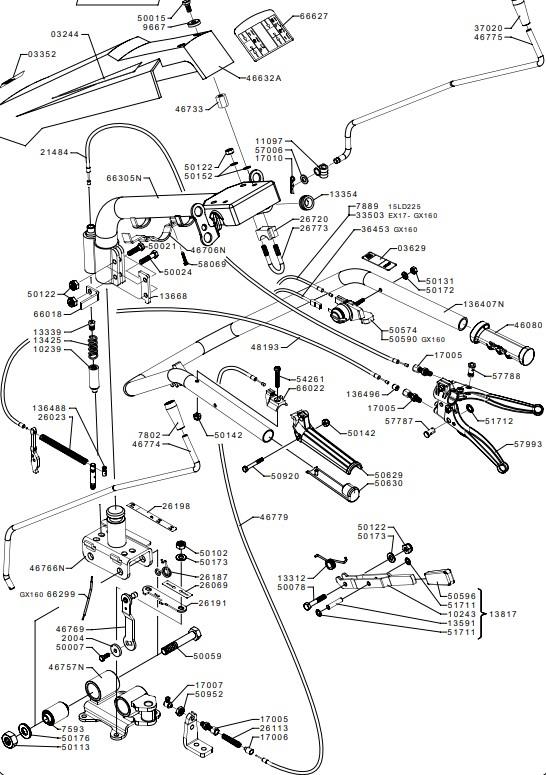

HANDLE EFFECTIVE UNTIL SERIAL NO. 546189 (from sn 211395 from 1996)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0324403244STICKER£4.12 Add to
0362903629STICKER£3.34 Add to
1024310243LEVER£18.62 Add to
1109711097GEARBOX ARTICULATION£3.34 Add to
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
1335413354RING£3.28 Add to
1342513425SPRING£4.47 Add to
1359113591PIN£3.57 Add to
136407N136407NHANDLEBAR£103.80 Add to
136488136488CLAMP£3.75 Add to
136496136496BOOT£2.53 Add to
1366813668SMALL PLATE£5.34 Add to
1381713817HANDLE£22.88 Add to
1700517005ADJUSTER£4.40 Add to
1700617006BUSHING£51.96 Add to
1701017010SPLIT PIN£1.99 Add to
186207186207WIRE£7.58 Add to
186351186351KNOB£4.51 Add to
20042004WASHER£3.69 Add to
2148421484WIRE£14.89 Add to
2602326023SPRING£2.97 Add to
2606926069STICKER£2.51 Add to
2611326113SPRING£3.64 Add to
2618726187LEVER SPRING£3.69 Add to
2619126191SMALL PLATE£7.36 Add to
2619826198STICKER£5.25 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
3350333503WIRE£9.82 Add to
3645336453WIRE£10.42 Add to
3702037020KNOB£3.93 Add to
4330043300ROD£5.23 Add to
4608046080HANDLE£6.44 Add to
46706N46706NBRACKET£4.96 Add to
4673346733EXTENSION£4.03 Add to
46757N46757NSUPPORT£64.59 Add to
46766N46766NSUPPORT£51.43 Add to
4676946769LEVER£15.89 Add to
4677446774ROD£24.89 Add to
4677546775ROD£16.76 Add to
4677946779WIRE£8.14 Add to
5000750007SCREW£1.50 Add to
5001550015SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
500220500220CLAMP£1.63 Add to
5002450024SCREW£1.46 Add to
5005950059SCREW£3.23 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5011350113NUT£1.71 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5014250142NUT£1.32 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017650176WASHER£1.60 Add to
5057450574ACCELERATOR CONTROL LEVER£8.74 Add to
5059050590ACCELERATOR CONTROL LEVER£24.66 Add to
5062950629HANDLE£14.41 Add to
5063050630HANDLE£8.34 Add to
5092050920SCREW£1.45 Add to
5095250952NUT£1.36 Add to
5171151711RING£1.44 Add to
5171251712RING£1.49 Add to
5426154261SCREW 6X40£0.36 Add to
5700657006WASHER£1.36 Add to
5778757787CYLINDER£3.39 Add to
5778857788CLAMP£3.39 Add to
5799357993LEVER£32.77 Add to
5806958069SCREW£1.36 Add to
6601866018GEAR HINDERING BRACKET£4.79 Add to
6602266022SUPPORT£8.21 Add to
6629966299WIRE£3.48 Add to
66305N66305NSTEERING COLUMN£151.40 Add to
6662766627STICKER£3.64 Add to
75937593SILENTBLOC£22.02 Add to
78027802KNOB£4.62 Add to
78897889WIRE£8.54 Add to
96679667WASHER£2.29 Add to
