  • HANDLE AND DRIVE LEVER SYSTEM (from sn 599726 to sn 710101 from 2015 to 2021)

HANDLE AND DRIVE LEVER SYSTEM (from sn 599726 to sn 710101 from 2015 to 2021)

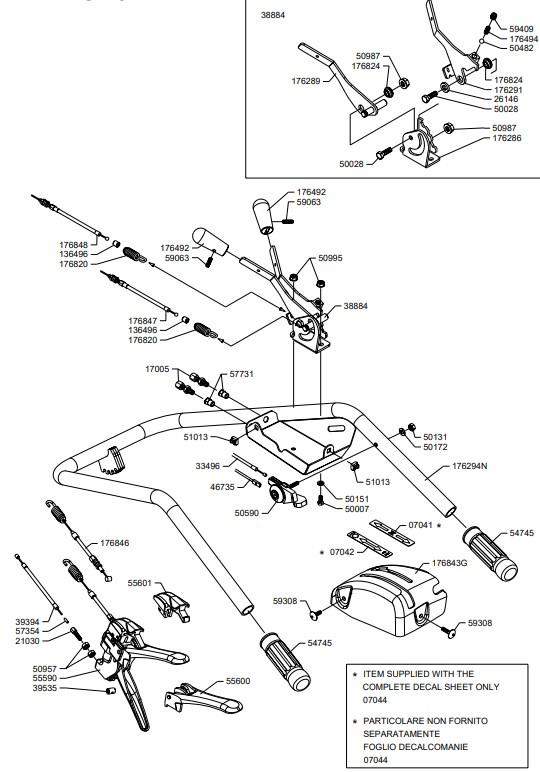

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0704407044STICKER£8.45 Add to
136496136496BOOT£2.53 Add to
1700517005ADJUSTER£5.27 Add to
176286176286SUPPORT£37.30 Add to
176289176289LEVER£30.35 Add to
176291176291LEVER£37.08 Add to
176294N176294NHANDLEBAR£108.83 Add to
176492176492KNOB£7.07 Add to
176494176494SPRING£9.10 Add to
176820176820SPRING£6.05 Add to
176824176824BUSHING£3.77 Add to
176843G176843GDASHBOARD£56.65 Add to
176847176847WIRE£10.45 Add to
176848176848WIRE£10.37 Add to
206227206227WIRE£74.34 Add to
2103021030ADJUSTER£3.67 Add to
2614626146WASHER£3.64 Add to
3349633496WIRE£7.16 Add to
3939439394WIRE£6.60 Add to
3953539535CLAMP£3.23 Add to
4673546735WIRE£10.31 Add to
5000750007SCREW£1.50 Add to
5002850028SCREW£1.49 Add to
5013150131NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5017250172WASHER£1.30 Add to
5048250482BALL£1.95 Add to
5059050590ACCELERATOR CONTROL LEVER£24.66 Add to
5095750957NUT£1.34 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5101351013CAGE-NUT£1.76 Add to
5474554745HANDLE£5.77 Add to
5559055590LEVER£90.41 Add to
5560055600LEVER£10.45 Add to
5560155601BUTTON£9.23 Add to
5735457354BOOT£1.60 Add to
5773157731THREADED INSERT£1.86 Add to
5906359063ALLEN SCREW£1.56 Add to
5930859308SCREW£1.92 Add to
5940959409ALLEN SCREW£0.36 Add to
