GRASS CUTTER 50 cm(from 2016)

Parts list

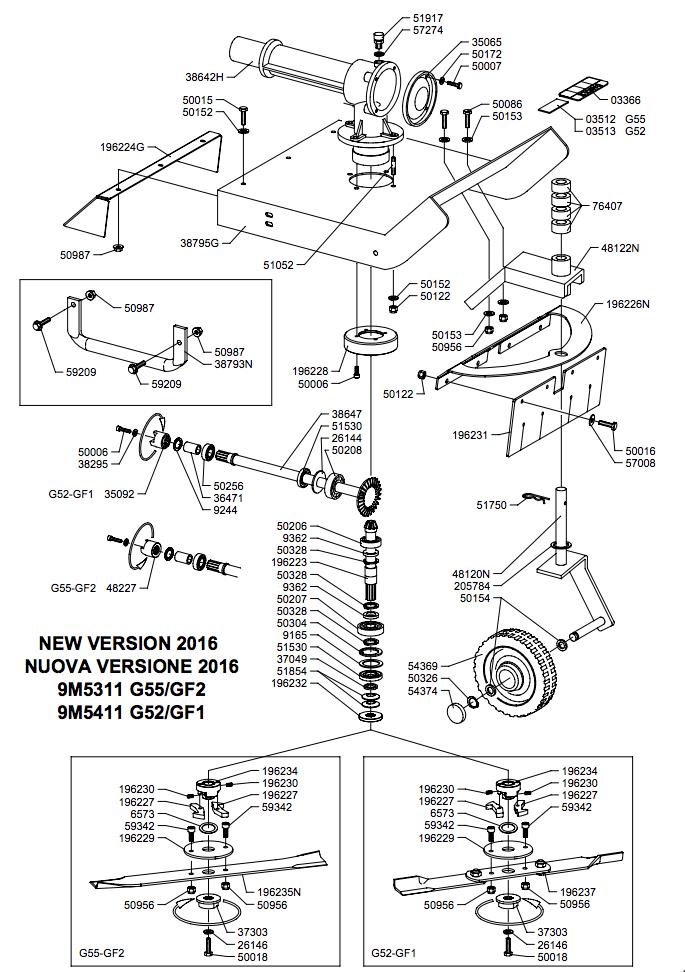

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0336603366STICKER£3.28 Add to
196223196223PINION£111.24 Add to
196224G196224GGUARD£20.52 Add to
196226N196226NGUARD£24.83 Add to
196227196227BRAKE CALIPER£8.89 Add to
196228196228BRAKE DRUM£37.63 Add to
196229196229DISK£6.84 Add to
196230196230SPRING£5.14 Add to
196231196231GUARD£19.69 Add to
196232196232DISK£16.26 Add to
196234196234COUPLING£35.51 Add to
196235N196235NCUTTING BLADE£56.48 Add to
196237196237CUTTING BLADE£71.89 Add to
2614426144SPACER£3.41 Add to
2614526145SPACER£3.64 Add to
2614626146WASHER£3.64 Add to
3506535065COVER£14.16 Add to
3509235092COUPLING£37.62 Add to
3647136471SPACER£8.00 Add to
3704937049WASHER£3.69 Add to
3730337303COVER£28.62 Add to
3829538295WASHER£3.43 Add to
3864238642GEARBOX£298.01 Add to
3864738647SHAFT£160.90 Add to
38793N38793NSKID PLATE£34.85 Add to
38795G38795GMETAL SHEET CARTER£221.16 Add to
48120N48120NYOKE£35.32 Add to
48122N48122NARM£46.51 Add to
4822748227COUPLING£30.34 Add to
5000650006SCREW£1.42 Add to
5000750007SCREW£1.50 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5001850018SET SCREWN/A POA
5008650086SCREW£1.86 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5017250172WASHER£1.30 Add to
5020650206BEARING£17.46 Add to
5020750207BEARING£8.85 Add to
5025650256BEARING£9.83 Add to
5030450304CIRCLIP£2.09 Add to
5032650326CIRCLIP£1.37 Add to
5032850328CIRCLIP£1.44 Add to
5095650956NUT£1.47 Add to
5098750987NUT£2.72 Add to
5105251052STUD£1.76 Add to
5153051530SEAL RING£5.33 Add to
5175051750SPLIT PIN£1.89 Add to
5185451854BELLEVILLE SPRING£2.60 Add to
5191751917PLUG£10.71 Add to
5242952429BEARING£16.07 Add to
5436954369WHEEL£22.82 Add to
5437454374GUARD£1.47 Add to
5700857008WASHER£1.35 Add to
5727457274WASHER£1.47 Add to
5920959209SCREW£1.49 Add to
5934259342SCREW£1.64 Add to
6557765577SPACER£1.07 Add to
65736573SPACER£2.70 Add to
7640776407SPACER£3.57 Add to
91659165SPACER£3.41 Add to
92449244SPACER£1.92 Add to
93629362SPACER£1.86 Add to
