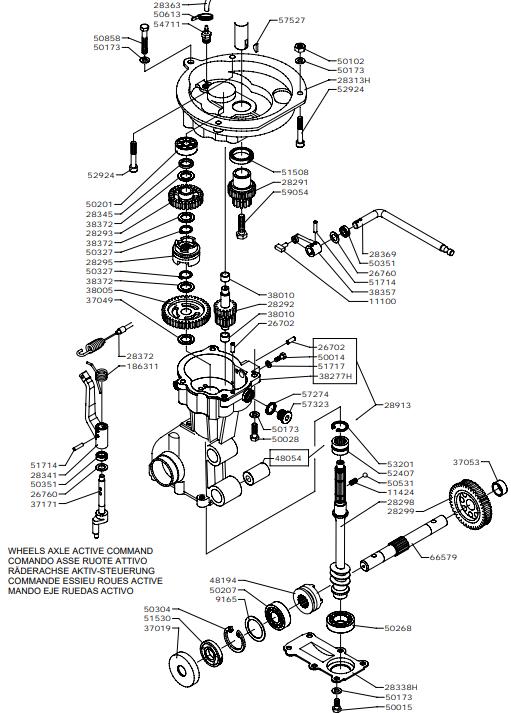

GEARBOX (from sn 565910)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1110011100DISK£4.27 Add to
1142411424SPRING£1.80 Add to
186311186311SPRING£9.97 Add to
2670226702PIN£4.37 Add to
2676026760SPACER£2.87 Add to
2829128291GEAR£90.07 Add to
2829228292SPROCKET£71.66 Add to
2829328293GEAR£106.46 Add to
2829528295COUPLING£80.14 Add to
2829828298WORM SCREW£171.83 Add to
2829928299RING GEAR£142.06 Add to
28313H28313HFLANGE£187.12 Add to
2833828338COVER£29.95 Add to
2834528345SPACER£2.88 Add to
2837228372WIRE£16.81 Add to
3701937019COVER£12.17 Add to
3704937049WASHER£3.69 Add to
3705337053SPACER£5.18 Add to
3717137171LEVER£44.31 Add to
3800538005GEAR£61.00 Add to
3801038010BEARING£11.55 Add to
38277H38277HGEARBOX£259.68 Add to
3835738357LEVER£18.28 Add to
3837238372RING£3.97 Add to
4805448054BUSHING£7.06 Add to
4819448194COUPLING£45.76 Add to
5001450014SCREW£1.44 Add to
5001550015SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5017350173WASHER£1.34 Add to
5020150201BEARING£15.38 Add to
5020750207BEARING£8.85 Add to
5026850268BEARING£12.73 Add to
5030450304CIRCLIP£2.09 Add to
5032750327CIRCLIP£1.40 Add to
5035150351SEAL RING£3.28 Add to
5053150531BALL£1.49 Add to
5061450614CLAMP£0.15 Add to
5085850858SCREW£1.71 Add to
5150851508SEAL RING£3.83 Add to
5153051530SEAL RING£5.33 Add to
5171451714PIN£1.61 Add to
5171751717WASHER£2.43 Add to
5240752407BEARING£54.89 Add to
5292452924SCREW£1.81 Add to
5320153201CIRCLIP£1.99 Add to
5727457274WASHER£1.47 Add to
5732357323MALE HEXAGONAL PLUG£4.56 Add to
5752757527FEATHER KEY£1.26 Add to
5905459054SCREW 3/8-24 L38£1.62 Add to
6657966579AXLE£75.13 Add to
91659165SPACER£3.41 Add to
