GEAR BOX (from sn 714050 from 2021)

Parts list

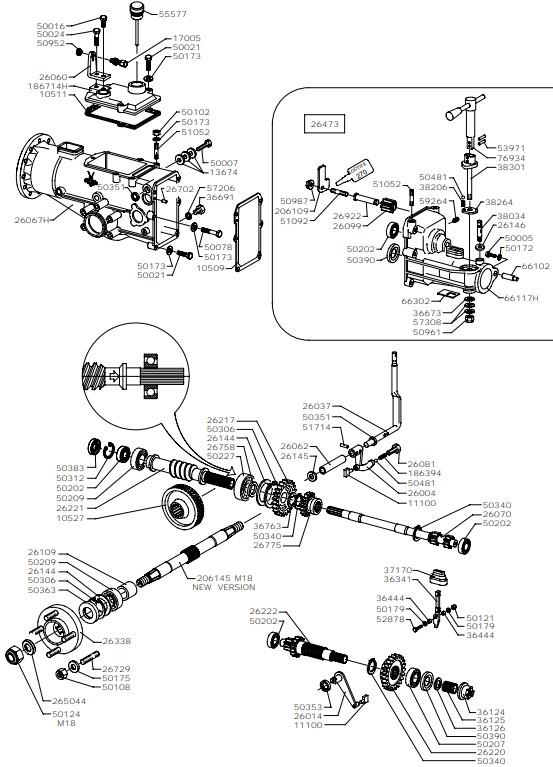

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1050910509GASKET£4.47 Add to
1051110511GASKET£3.43 Add to
1052710527RING GEAR£154.70 Add to
1110011100DISK£4.27 Add to
1367413674WASHER£3.43 Add to
1700517005ADJUSTER£4.40 Add to
186394186394SPRING£2.99 Add to
186714H186714HCOVER£68.23 Add to
206145206145AXLE£70.30 Add to
2601426014LEVER£32.00 Add to
2603726037GEARSHIFT LEVER£12.65 Add to
2606026060SUPPORT£11.31 Add to
2606226062SPACER£4.26 Add to
26067H26067HGEARBOX£366.89 Add to
2607026070SHAFT£127.45 Add to
2608126081SCREW£5.25 Add to
2609926099GEAR£47.80 Add to
2610926109SPACER£5.61 Add to
2614426144SPACER£3.41 Add to
2614526145SPACER£3.64 Add to
2614626146WASHER£3.64 Add to
2621726217GEAR£65.10 Add to
2622026220GEAR£70.30 Add to
2622126221WORM SCREW£156.18 Add to
2622226222SHAFT£107.23 Add to
2633826338WHEEL HUB£59.85 Add to
2647326473COVER£321.20 Add to
265044265044WASHER£3.77 Add to
2670226702PIN£4.37 Add to
2672926729STUD£3.04 Add to
2675826758SPACER£3.19 Add to
2677526775GEAR£69.20 Add to
2692226922PIN£17.60 Add to
3612436124COUPLING£33.35 Add to
3612536125SPRING£3.92 Add to
3612636126SPRING GUIDE£3.92 Add to
3634136341LEVER£11.94 Add to
3644436444SPACER£1.88 Add to
3667336673SPACER£4.07 Add to
3669136691MALE HEXAGONAL PLUG£3.57 Add to
3676336763RING£6.94 Add to
3717037170BELLOWS£5.59 Add to
3803438034PIN£6.77 Add to
3820638206LEVER SPING£1.80 Add to
3826438264SMALL PLATE£3.40 Add to
3830138301ROD£30.19 Add to
5000550005SHAFT -INPUTN/A POA
5000750007SCREW£1.50 Add to
5001650016SCREW£18.79 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5010850108NUT£1.71 Add to
5012150121NUT£1.36 Add to
5012450124NUT£2.84 Add to
5017250172WASHER£1.30 Add to
5017350172WASHER£1.30 Add to
5017550175WASHER£1.42 Add to
5017950179WASHER£1.30 Add to
5020250202BEARING£8.33 Add to
5020750207BEARING£8.85 Add to
5020950209BEARING£15.55 Add to
5022750227BEARING£40.58 Add to
5030650306CIRCLIP£2.31 Add to
5031250312CIRCLIP£1.71 Add to
5034050340CIRCLIP£1.45 Add to
5035150351SEAL RING£3.28 Add to
5035350353SEAL RING£4.07 Add to
5036350363SEAL RING£4.46 Add to
5038350383SEAL RING£4.56 Add to
5039050390SEAL RING£4.78 Add to
5048150481BALL£1.71 Add to
5095250952NUT£1.36 Add to
5096150961NUT£1.61 Add to
5098750987NUT£2.72 Add to
5105251052STUD£1.76 Add to
5109251092STUD£1.97 Add to
5171451714PIN£1.61 Add to
5287852878SCREW 5X 40£0.22 Add to
5397153971PIN£0.36 Add to
5557755577PLUG£8.10 Add to
5720657206WASHER£1.44 Add to
5730857308BELLEVILLE SPRING£1.61 Add to
5926459264ALLEN SCREW£0.76 Add to
6610266102DOWEL PIN£14.95 Add to
66117H66117HGEARBOX COVER£245.17 Add to
6630266302STICKER£1.15 Add to
7693476934PIN£41.64 Add to
