GEAR BOX (from sn 659943 to sn 692914 from 2018 to 2020)

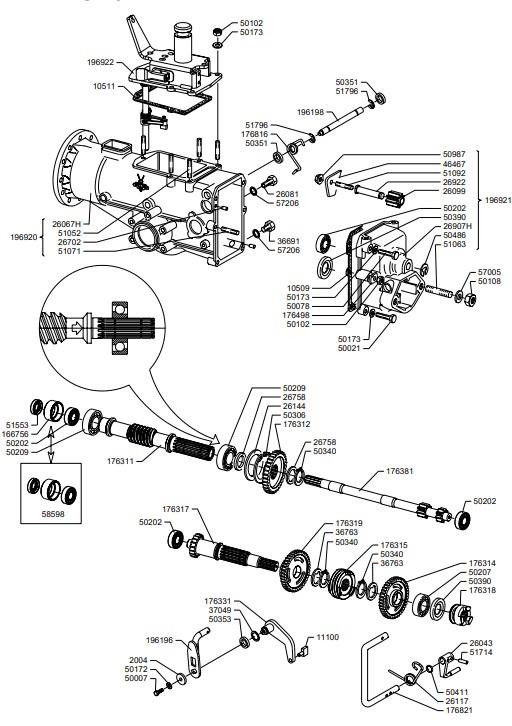

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1050910509GASKET£4.47 Add to
1051110511GASKET£3.43 Add to
1110011100DISK£4.27 Add to
166756166756BUSHING£11.16 Add to
176311176311WORM SCREW£160.21 Add to
1763121763121ST SPEED GEAR£59.03 Add to
176314176314REVERSE SPEED GEAR£42.17 Add to
176315176315INVERTER COUPLING£40.46 Add to
176317176317SECONDARY SHAFT£126.47 Add to
176318176318PTO COUPLING£43.85 Add to
176319176319GEAR£60.68 Add to
176331176331LEVER£30.35 Add to
176381176381PRIMARY SHAFT£124.78 Add to
176498176498SMALL PLATE£2.53 Add to
176816176816SPRING£6.48 Add to
196196196196LEVER£30.73 Add to
196198196198SPRING INVERTER ROD£10.22 Add to
196921196921GEAR BOX COVER ASB£205.40 Add to
196922196922COVER£203.52 Add to
20042004WASHER£3.69 Add to
2604326043PTO LEVER£29.51 Add to
26067H26067HGEARBOX£366.89 Add to
2608126081SCREW£5.25 Add to
2609926099GEAR£47.80 Add to
2611726117SPRING£3.64 Add to
2614426144SPACER£3.41 Add to
2670226702PIN£4.37 Add to
2675826758SPACER£3.19 Add to
2692226922PIN£17.60 Add to
3669136691MALE HEXAGONAL PLUG£3.57 Add to
3676336763RING£6.94 Add to
3704937049WASHER£3.69 Add to
4646746467PLATE£9.80 Add to
5000750007SCREW£1.50 Add to
5002150021SCREW£1.46 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5010850108NUT£1.71 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5020250202BEARING£8.33 Add to
5020750207BEARING£8.85 Add to
5020950209BEARING£15.55 Add to
5030650306CIRCLIP£2.31 Add to
5034050340CIRCLIP£1.45 Add to
5035150351SEAL RING£3.28 Add to
5035350353SEAL RING£4.07 Add to
5039050390SEAL RING£4.78 Add to
5041150411O-RING£1.36 Add to
5048650486RING SNAP£1.52 Add to
5098750987NUT£2.72 Add to
5105251052STUD£1.76 Add to
5107151071STUD£2.51 Add to
5109251092STUD£1.97 Add to
5155351553SEAL RING£5.03 Add to
5171451714PIN£1.61 Add to
5179651796RING SNAP£1.34 Add to
5700557005WASHER£1.60 Add to
5720657206WASHER£1.44 Add to
5859858598KIT BEARING£23.28 Add to
5945059450STUD£3.62 Add to
