FUEL TANK AND THROTTLE (from sn 672503 to sn 682205 from 2019 to 2019)

Parts list

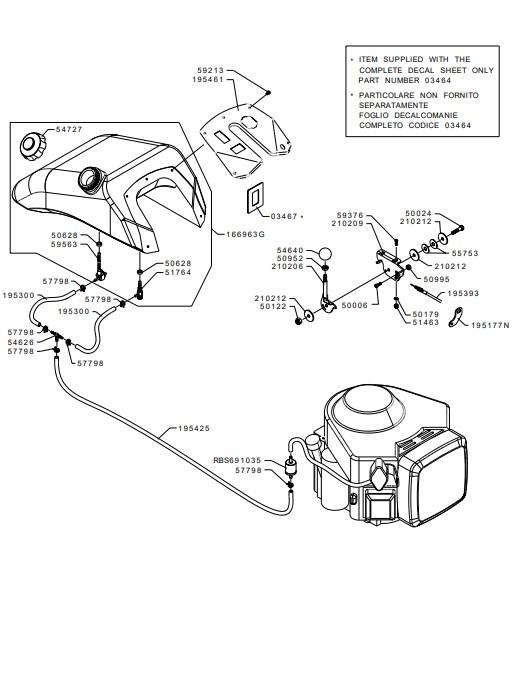

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0346403464STICKER£30.77 Add to
195177N195177NBRACKET£3.87 Add to
195300195300PIPE£6.09 Add to
195393195393WIRE£21.23 Add to
195461195461DASHBOARD£38.38 Add to
195972195972TANK£283.44 Add to
210206210206LEVER£16.64 Add to
210209210209BRACKET£7.43 Add to
210212210212WASHER£2.39 Add to
5000650006SCREW£1.42 Add to
5002450024SCREW£1.46 Add to
5012250122NUT£1.44 Add to
5017950179WASHER£1.30 Add to
5062850628GASKET£1.55 Add to
5095250952NUT£1.36 Add to
5099550995NUT£1.32 Add to
5146351463NUT£1.34 Add to
5176451764TAP£10.81 Add to
5462654626CONNECTION£3.23 Add to
5464054640BALL£6.17 Add to
5472754727PLUG£27.92 Add to
5575355753BELLEVILLE SPRING£1.90 Add to
5779857798CLAMP£1.49 Add to
5921359213SCREW£1.42 Add to
5937659376SCREW£1.49 Add to
5956359563TAP£14.77 Add to
RBS691035RBS691035FILTERING ELEMENT£21.77 Add to
