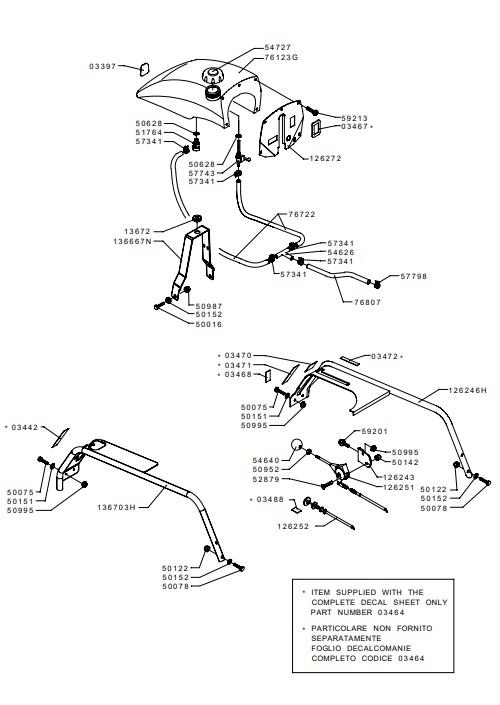

FUEL TANK AND THROTTLE (from sn 363301 to sn 385500 from 2006 to 2007)

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
03397	03397	STICKER	£6.30	Add to
03464	03464	STICKER	£30.77	Add to
126252	126252	STARTER CONTROL LEVER	£40.82	Add to
136703H	136703H	HANDLE	£65.84	Add to
13672	13672	SHOCK ABSORBER	£3.93	Add to
50016	50016	SCREW	£18.80	Add to
50075	50075	SCREW	£1.42	Add to
50078	50078	SCREW	£1.69	Add to
50122	50122	NUT	£1.44	Add to
50142	50142	NUT	£1.32	Add to
50151	50151	WASHER	£1.28	Add to
50152	50152	WASHER	£1.30	Add to
50628	50628	GASKET	£1.55	Add to
50952	50952	NUT	£1.36	Add to
50987	50987	NUT	£2.72	Add to
50995	50995	NUT	£1.32	Add to
51764	51764	TAP	£10.81	Add to
52879	52879	SCREW	£1.39	Add to
54626	54626	CONNECTION	£3.23	Add to
54640	54640	BALL	£6.17	Add to
54727	54727	PLUG	£27.92	Add to
57341	57341	CLAMP	£1.42	Add to
57743	57743	COCK	£11.74	Add to
57798	57798	CLAMP	£1.49	Add to
59201	59201	SCREW	£1.39	Add to
59213	59213	SCREW	£1.42	Add to
76722	76722	PIPE	£9.20	Add to
76807	76807	PIPE	£15.30	Add to
