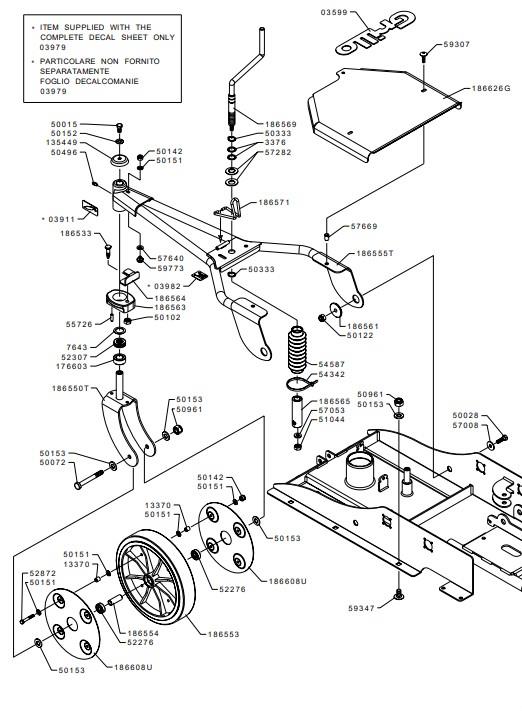

FRONT WHEEL PARALLELOGRAM (from sn 577726 to sn 581310 from 2014 to 2014)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0359903599STICKER£10.62 Add to
0397903979STICKER£21.51 Add to
1337013370SPACER£4.56 Add to
135449135449BOOT£4.07 Add to
176603176603SPACER£8.54 Add to
186533186533SCREW£7.03 Add to
186550T186550TYOKE£48.36 Add to
186554186554SPACER£5.87 Add to
186555T186555TFRONT WHEEL PARALLELOGRAM£139.71 Add to
186561186561BUSHING£8.59 Add to
186563186563PLUG£12.47 Add to
186564186564BRACKET£6.27 Add to
186565186565LEVER BODY£16.85 Add to
186569186569LEVER£42.98 Add to
186571186571STOP£13.42 Add to
186608U186608UDISK£12.39 Add to
186626G186626GHOOD£53.75 Add to
33763376SPACER£3.02 Add to
5001550015SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5007250072SCREW£2.26 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5033350333CIRCLIP£1.37 Add to
5049650496FITTING£1.90 Add to
5096150961NUT£1.61 Add to
5104451044NUT£2.54 Add to
5230752307BEARING£4.85 Add to
5287252872SCREW£1.44 Add to
5434254342CLAMP£1.89 Add to
5458754587RUBBER BELLOW£13.12 Add to
5572655726PIN£1.49 Add to
5700857008WASHER£1.35 Add to
5705357053WASHER£1.39 Add to
5728257282BELLEVILLE SPRING£2.27 Add to
5764057640BELLEVILLE SPRING£2.04 Add to
5766957669THREADED INSERT£1.64 Add to
5930759307SCREW£2.41 Add to
5934759347SCREW£0.79 Add to
5977359773MAGNET£6.21 Add to
76437643SPACER£2.71 Add to
