FRONT WHEEL BRAKE UNTIL SERIAL NO. 385500 (from sn 264001 to sn 385500 from 2000 to 2007)

Parts list

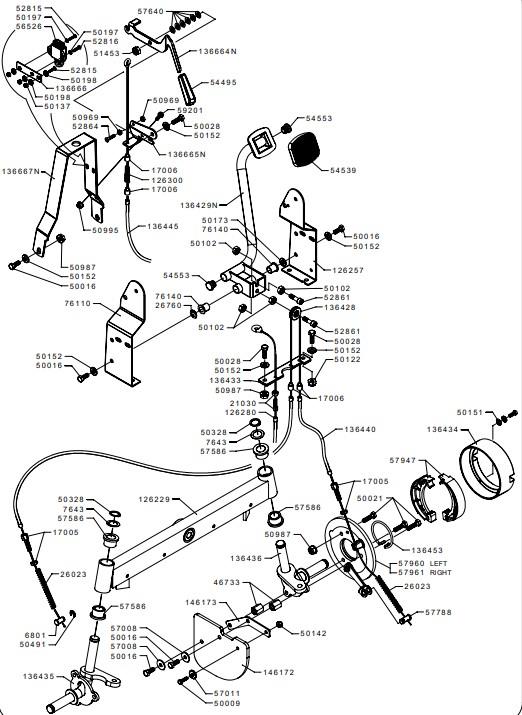

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126280126280WIRE£6.33 Add to
126300126300SPRING£9.06 Add to
136428136428PULLEY£8.59 Add to
136429N136429NPEDAL£53.74 Add to
136433136433BRACKET£7.04 Add to
136434136434BRAKE DRUM£59.82 Add to
136435136435SPINDLE£39.51 Add to
136436136436SPINDLE£40.42 Add to
136440136440WIRE£9.71 Add to
136445136445WIRE£9.15 Add to
136453136453SPRING£5.25 Add to
136664N136664NLEVER£10.17 Add to
146172146172GUARD PLATE£17.06 Add to
146173146173BRACKET£4.66 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
2103021030ADJUSTER£3.67 Add to
2602326023SPRING£2.97 Add to
2676026760SPACER£2.87 Add to
4673346733EXTENSION£4.03 Add to
5000950009SCREW£1.42 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013750137NUT£1.30 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5019750197WASHER£1.29 Add to
5019850198WASHER£2.82 Add to
5032850328CIRCLIP£1.44 Add to
5049150491RING SNAP£1.44 Add to
5096950969NUT£1.30 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5145351453NUT£1.36 Add to
5281552815SCREW£1.41 Add to
5281652816SCREW£1.32 Add to
5286152861SCREW£1.59 Add to
5449554495HANDLE£3.31 Add to
5453954539DUST CAP£14.01 Add to
5455354553PLUG£0.78 Add to
5652656526MICRO-SWITCH£25.17 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5758657586BUSHING£4.01 Add to
5764057640BELLEVILLE SPRING£2.04 Add to
5778857788CLAMP£3.39 Add to
5794757947BRAKE£18.37 Add to
5796057960BRAKES GROUP BLOCKHOLDER£115.92 Add to
5796157961BRAKES GROUP BLOCKHOLDER£115.92 Add to
5920159201SCREW£1.39 Add to
68016801CONNECTION£9.59 Add to
7614076140NYLON BUSHING£6.83 Add to
76437643SPACER£2.71 Add to
