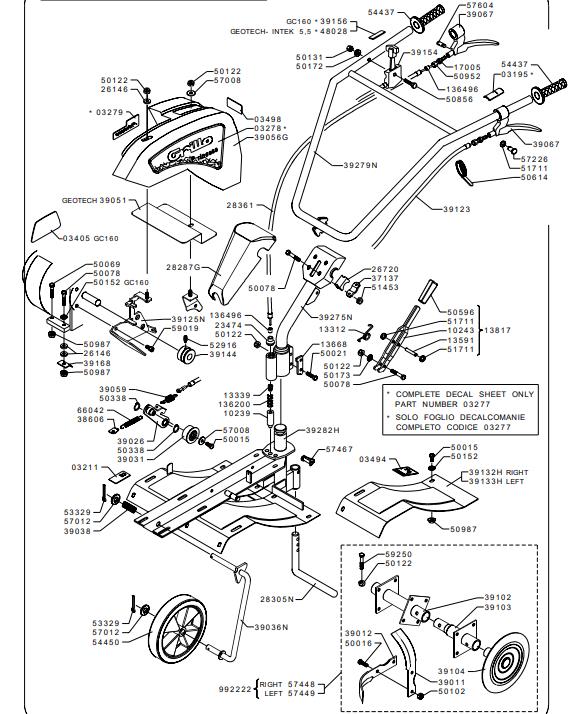

FRAME PRINCESS SINGLE GEAR NEW (from sn 198751 from 1993)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0349403494STICKER£2.35 Add to
0349803498STICKER£4.07 Add to
1024310243LEVER£18.62 Add to
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
1359113591PIN£3.57 Add to
136200136200SPRING£3.12 Add to
136496136496BOOT£2.53 Add to
1366813668SMALL PLATE£5.34 Add to
1381713817HANDLE£22.88 Add to
1700517005ADJUSTER£4.40 Add to
186351186351KNOB£4.51 Add to
2347423474BUSHING£9.30 Add to
2614626146WASHER£3.64 Add to
2672026720SUPPORT£3.64 Add to
28287G28287GGUARD£28.80 Add to
28305N28305NMOTORHOE SPUR£28.68 Add to
2836128361WIRE£4.55 Add to
3713737137SMALL PLATE£5.54 Add to
3860638606SMALL PLATE£3.53 Add to
3901139011BLADE RH MP3£5.16 Add to
3901239012BLADE LH MP3£5.16 Add to
3902639026BELT STRETCHER£23.50 Add to
3903139031GUIDE PULLEY£13.51 Add to
39036N39036NWHEEL SUPPORT£22.19 Add to
3903839038SPRING£2.27 Add to
39056G39056GFAIRING£142.01 Add to
3905939059SPRING£3.57 Add to
3906739067HANDLE£24.56 Add to
3912339123WIRE£16.69 Add to
39132H39132HEXTENSION£19.09 Add to
39133H39133HEXTENSION£19.09 Add to
3914439144ENGINE PULLEY 2AV BH173 B&S£24.25 Add to
3915439154ACCELERATOR CONTROL LEVER£21.57 Add to
3916839168STRICKER PLATE£2.38 Add to
39275N39275NSTEERING COLUMN£82.97 Add to
4330043300ROD£5.23 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5006950069SCREW£1.59 Add to
5007850078SCREW£1.69 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5033850338CIRCLIP£1.42 Add to
5061450614CLAMP£0.15 Add to
5085650856SCREW£1.42 Add to
5095250952NUT£1.36 Add to
5098750987NUT£2.72 Add to
5145351453NUT£1.36 Add to
5171151711RING£1.44 Add to
5291652916ALLEN SCREW£0.47 Add to
5332953329SPLIT PIN£1.42 Add to
5443754437HANDLE£2.53 Add to
5700857008WASHER£1.35 Add to
5701257012WASHER£1.81 Add to
5722657226CYLINDER£3.89 Add to
5746757467PIN£4.37 Add to
5760457604CLAMP£3.24 Add to
5869758697REPLACEMENT KIT 54450£23.76 Add to
5901959019SCREW£1.56 Add to
6604266042SPRING£8.52 Add to
