FRAM PRINCESS FIRST VERSION (from sn 198751 from 1993)

Parts list

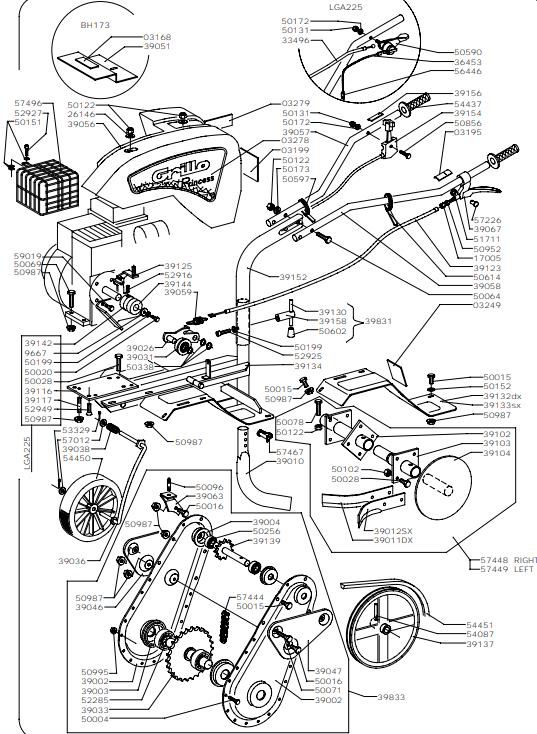

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0349203492STICKER£2.46 Add to
0349403494STICKER£2.35 Add to
1700517005ADJUSTER£4.40 Add to
2614626146WASHER£3.64 Add to
3349633496WIRE£7.16 Add to
3645336453WIRE£10.42 Add to
3900339003COVER£4.85 Add to
3900439004COVER£3.86 Add to
3902639026BELT STRETCHER£23.50 Add to
3903139031GUIDE PULLEY£13.51 Add to
3903839038SPRING£2.27 Add to
3905939059SPRING£3.57 Add to
3906739067HANDLE£24.56 Add to
3912339123WIRE£16.69 Add to
3913939139SHAFT£51.84 Add to
3914439144ENGINE PULLEY 2AV BH173 B&S£24.25 Add to
3915439154ACCELERATOR CONTROL LEVER£21.57 Add to
3915639156STICKER£3.43 Add to
3983139831LEVER£29.68 Add to
3984439844GEARBOX£301.68 Add to
3997639976SUPPORT£8.96 Add to
5000450004SCREW£1.36 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002050020SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5006450064SCREW£1.85 Add to
5006950069SCREW£1.59 Add to
5007150071SCREW£1.75 Add to
5007850078SCREW£1.69 Add to
5009650096STUD£3.31 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5019950199WASHER£1.58 Add to
5025650256BEARING£9.83 Add to
5033850338CIRCLIP£1.42 Add to
5059050590ACCELERATOR CONTROL LEVER£24.66 Add to
5059750597CLAMP£1.81 Add to
5060250602KNOB£3.65 Add to
5061450614CLAMP£0.15 Add to
5085650856SCREW£1.42 Add to
5095250952NUT£1.36 Add to
5098750987NUT£2.72 Add to
5099550995NUT£1.32 Add to
5171151711RING£1.44 Add to
5228552285BEARING£11.04 Add to
5291652916ALLEN SCREW£0.47 Add to
5292552925SCREW£1.69 Add to
5294952949SCREW£1.56 Add to
5332953329SPLIT PIN£1.42 Add to
5408754087PIN£1.89 Add to
5443754437HANDLE£2.53 Add to
5445154451BELT£27.37 Add to
5701257012WASHER£1.81 Add to
5722657226CYLINDER£3.89 Add to
5744457444DRIVE CHAIN£28.30 Add to
5746757467PIN£4.37 Add to
5869758697REPLACEMENT KIT 54450£23.76 Add to
5901959019SCREW£1.56 Add to
96679667WASHER£2.29 Add to
