ENGINE VANGUARD 18hp (from sn 280101 from 2003)

Parts list

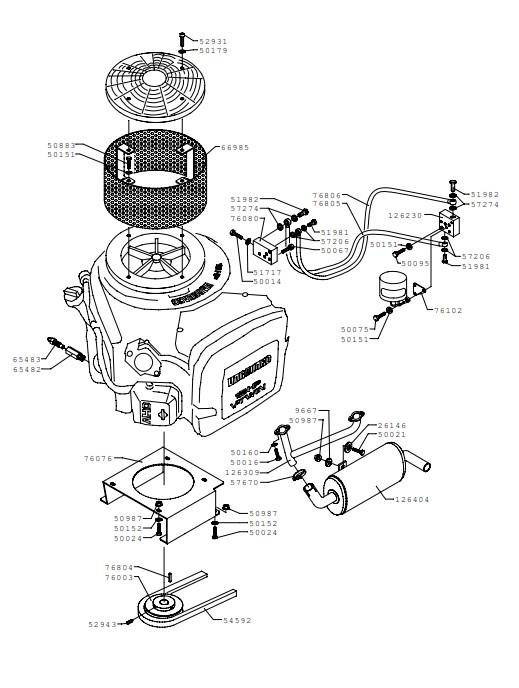

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126230126230FLANGE£34.95 Add to
2614626146WASHER£3.64 Add to
5001450014SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5006750067SCREW£1.45 Add to
5007550075SCREW£1.42 Add to
5009550095SCREW£1.42 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017950179WASHER£1.30 Add to
5088350883SCREW£1.44 Add to
5098750987NUT£2.72 Add to
5171751717WASHER£2.43 Add to
5198151981HOLLON SCREW£4.45 Add to
5198251982HOLLON SCREW£5.36 Add to
5293152931SCREW£1.44 Add to
5294352943ALLEN SCREW£0.62 Add to
5459254592BELT£39.63 Add to
5720657206WASHER£1.44 Add to
5727457274WASHER£1.47 Add to
5767057670CLAMP£3.72 Add to
6548265482EXTENSION£10.94 Add to
6548365483STEM£9.56 Add to
7608076080FLANGE£38.86 Add to
7610276102GASKET£2.42 Add to
7680476804FEATHER KEY£2.71 Add to
7680576805HYDRAULIC HOSE£21.79 Add to
7680676806HYDRAULIC HOSE£21.79 Add to
96679667WASHER£2.29 Add to
