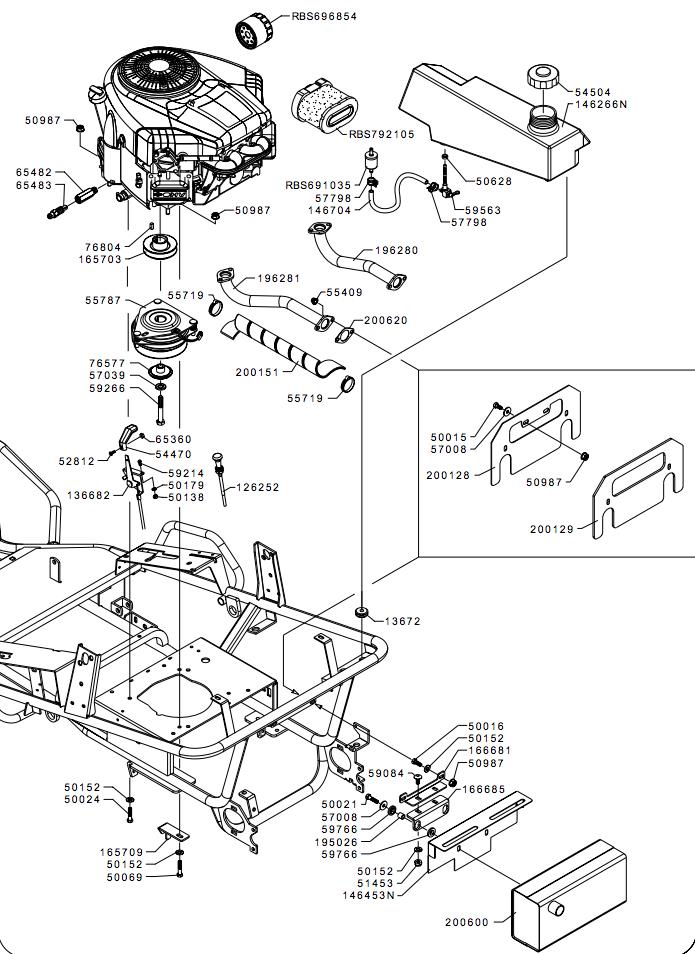

ENGINE B&S 7220_CLUTCH & THROTTLE(from s/n 609428 to s/n 651118 from 2016 to 2017)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126252126252STARTER CONTROL LEVER£40.82 Add to
136682136682ACCELERATOR CONTROL LEVER£18.50 Add to
1367213672SHOCK ABSORBER£3.93 Add to
146266N146266NTANK£173.73 Add to
146704146704PIPE£4.83 Add to
165703165703ENGINE PULLEY CLS7 EC£49.35 Add to
165709165709CLUTCH LOCK PLATE£8.04 Add to
166681166681BRACKET£18.69 Add to
166685166685BRACKET£7.62 Add to
195026195026SPACER£5.23 Add to
196280196280MANIFOLD£52.79 Add to
196391196391MANIFOLD£50.72 Add to
200128200128GUARD£21.51 Add to
200129200129INSULATOR£21.51 Add to
200151200151TAPE£28.64 Add to
200620200620GASKET£3.23 Add to
255100255100MUFFLER£128.63 Add to
500030500030ELECTORMAGN. CLUTCH KIT£438.09 Add to
500080500080TOOL KIT£5.19 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
5006950069SCREW£1.59 Add to
5013850138NUT£1.30 Add to
5015250152WASHER£1.30 Add to
5017950179WASHER£1.30 Add to
5062850628GASKET£1.55 Add to
5098750987NUT£2.72 Add to
5145351453NUT£1.36 Add to
5281252812SCREW£1.30 Add to
5450454504TANK CAP£29.18 Add to
5540955409NUT£1.58 Add to
5571955719CLAMP£1.81 Add to
5700857008WASHER£1.35 Add to
5703957039WASHER£1.97 Add to
5779857798CLAMP£1.49 Add to
5908459084SCREW£1.69 Add to
5921459214SCREW£1.45 Add to
5926659266SCREW£3.84 Add to
5956359563TAP£14.77 Add to
5976659766SHOCK ABSORBER£6.70 Add to
6536065360NUT£2.53 Add to
6548265482EXTENSION£10.94 Add to
6548365483STEM£9.56 Add to
7657776577WASHER£19.69 Add to
7680476804FEATHER KEY£2.71 Add to
RBS691035RBS691035FILTERING ELEMENT£21.77 Add to
RBS792105RBS79210522HP AIR FILTER£87.44 Add to
