  • ENGINE B&S 7180 CLUTCH AND THROTTLE (from sn 685873 to sn 703860 from 2019 to 2021)

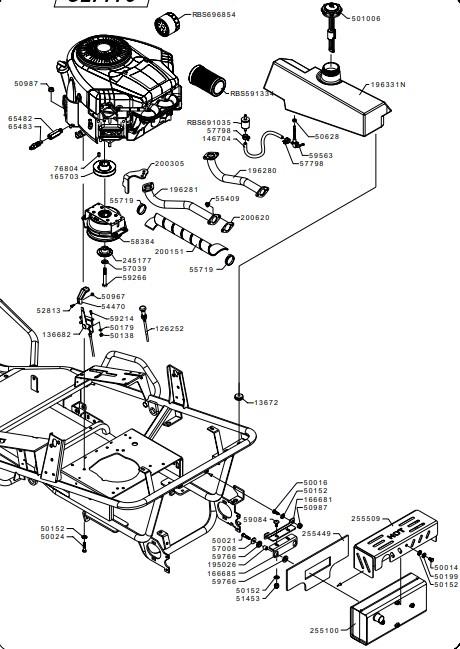

ENGINE B&S 7180 CLUTCH AND THROTTLE (from sn 685873 to sn 703860 from 2019 to 2021)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
126252126252STARTER CONTROL LEVER£40.82 Add to
136682136682ACCELERATOR CONTROL LEVER£18.50 Add to
1367213672SHOCK ABSORBER£3.93 Add to
146704146704PIPE£4.83 Add to
165703165703ENGINE PULLEY CLS7 EC£49.35 Add to
166681166681BRACKET£18.69 Add to
166685166685BRACKET£7.62 Add to
195026195026SPACER£5.23 Add to
196281196281MANIFOLD£56.30 Add to
196331N196331NTANK£142.01 Add to
200151200151TAPE£28.64 Add to
200305200305CLUTCH LOCK PLATE£7.33 Add to
200620200620GASKET£3.23 Add to
245177245177WASHER£11.49 Add to
255100255100MUFFLER£128.63 Add to
255449255449INSULATOR£34.16 Add to
255509255509MUFFLER PROTECTION£88.80 Add to
500080500080TOOL KIT£5.19 Add to
5001450014SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002450024SCREW£1.46 Add to
501006501006TANK CAP£61.95 Add to
5013850138NUT£1.30 Add to
5015250152WASHER£1.30 Add to
5017950179WASHER£1.30 Add to
5019950199WASHER£1.58 Add to
5062850628GASKET£1.55 Add to
5096750967NUT£1.41 Add to
5098750987NUT£2.72 Add to
5145351453NUT£1.36 Add to
5281352813SCREW£1.30 Add to
5540955409NUT£1.58 Add to
5571955719CLAMP£1.81 Add to
5700857008WASHER£1.35 Add to
5703957039WASHER£1.97 Add to
5779857798CLAMP£1.49 Add to
5908459084SCREW£1.69 Add to
5921459214SCREW£1.45 Add to
5926659266SCREW£3.84 Add to
5956359563TAP£14.77 Add to
5976659766SHOCK ABSORBER£6.70 Add to
6548265482EXTENSION£10.94 Add to
6548365483STEM£9.56 Add to
7680476804FEATHER KEY£2.71 Add to
RBS591334RBS591334AIR CLEANER£52.96 Add to
RBS691035RBS691035FILTERING ELEMENT£21.77 Add to
RBS696854RBS696854OIL FILTER£51.19 Add to
