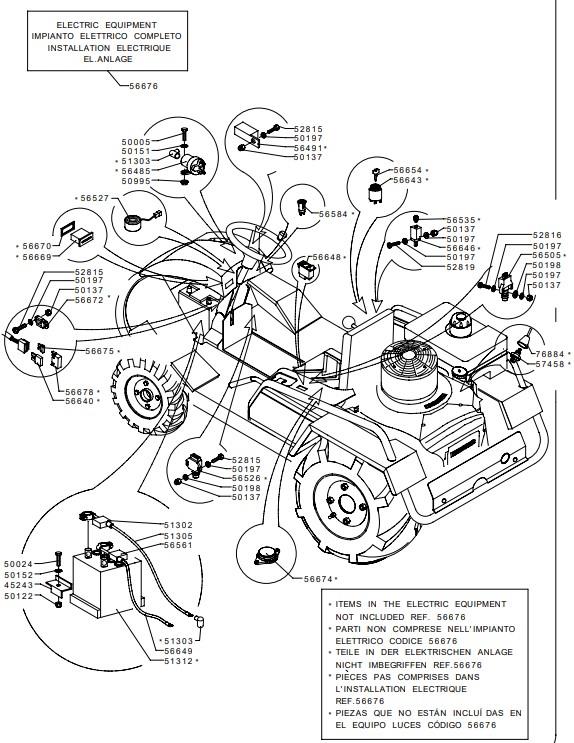

ELECTRIC EQUIPMENT - VANGUARD 16hp (from sn 264001 from 2001)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
4524345243SMALL PLATE£6.17 Add to
5000550005SHAFT -INPUT£1.53 Add to
5002450024SCREW£1.46 Add to
5012250122NUT£1.44 Add to
5013750137NUT£1.30 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5019750197WASHER£1.29 Add to
5019850198WASHER£2.82 Add to
5099550995NUT£1.32 Add to
5130251302GUARD£8.04 Add to
5130351303INSULATING CAP£2.81 Add to
5130551305CABLES BATTERY BOOSTER£35.87 Add to
5131251312DRY BATTERY£153.83 Add to
5281552815SCREW£1.41 Add to
5281652816SCREW£1.32 Add to
5281952819SCREW£1.41 Add to
5649156491RELAY£22.49 Add to
5650556505MICRO-SWITCH£43.22 Add to
5652656526MICRO-SWITCH£25.17 Add to
5652756527WARNING HORN£32.10 Add to
5653556535UNION£5.13 Add to
5656156561GUARD£8.68 Add to
5664056640FUSE£5.67 Add to
5664356643IGNITION SWITCH£33.57 Add to
5664656646MICRO-SWITCH£33.82 Add to
5664956649CABLES BATTERY BOOSTER£33.29 Add to
5665456654KEYS COUPLE£11.84 Add to
5666956669HOUR-METER£113.82 Add to
5667256672SMALL PLATE£4.03 Add to
5667456674MICRO-SWITCH£43.39 Add to
5667556675FUSE£2.48 Add to
5667656676ELECTRIC SYSTEM£498.47 Add to
5667856678COVER£2.60 Add to
