ELECTRIC EQUIPMENT (from sn 521515 to sn 544263 from 2009 to 2011)

Parts list

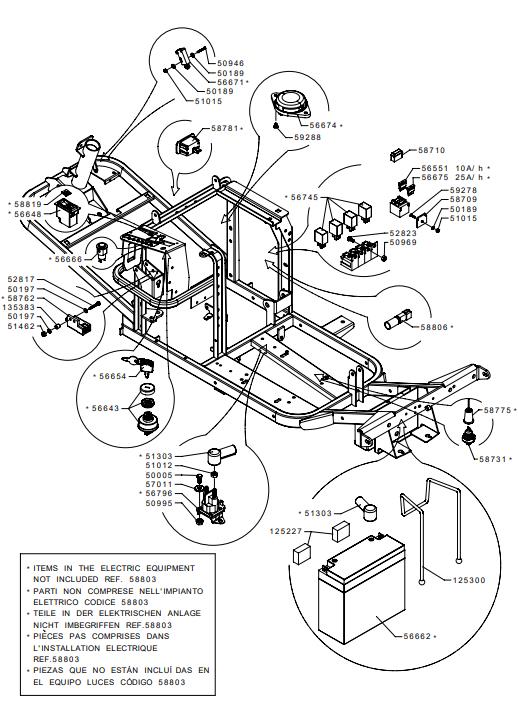

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
125227125227RUBBER WEATHERSTRIP£1.71 Add to
135383135383SPACER£1.84 Add to
5000550005SHAFT -INPUT£1.53 Add to
5018950189WASHER£1.34 Add to
5019750197WASHER£1.29 Add to
5094650946SCREW£1.36 Add to
5096950969NUT£1.30 Add to
5099550995NUT£1.32 Add to
5101251012NUT£1.54 Add to
5101551015NUT£1.34 Add to
5130351303INSULATING CAP£2.81 Add to
5146251462NUT£1.34 Add to
5281752817SCREW£1.32 Add to
5282352823SCREW£0.15 Add to
5655156551FUSE£2.48 Add to
5664356643IGNITION SWITCH£33.57 Add to
5664856648SWITCH£57.37 Add to
5665456654KEYS COUPLE£11.84 Add to
5666256662DRY BATTERY£128.27 Add to
5667156671MICRO-SWITCH£23.47 Add to
5667456674MICRO-SWITCH£43.39 Add to
5667556675FUSE£2.48 Add to
5674556745RELAY£11.64 Add to
5679656796RELAY£45.01 Add to
5701157011WASHER£1.30 Add to
5870958709FIXING PLATE WITH 1 SCREW£2.49 Add to
5871058710FUSE COVER£2.31 Add to
5873158731PRESSURE SWITCH£27.13 Add to
5876258762MICRO-SWITCH£17.46 Add to
5877558775CABLE£11.50 Add to
5880658806CAPACITOR£6.87 Add to
5881958819PLATE£4.01 Add to
5927859278SCREW£1.36 Add to
5928859288SCREW£0.15 Add to
