ELECTRIC EQUIPMENT (from sn 504802 to sn 520342 from 2008 to 2009)

Parts list

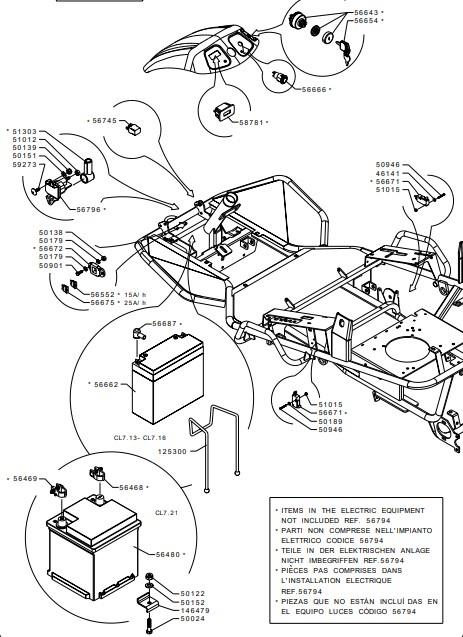

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
146479146479BRACKET£7.36 Add to
4614146141STICKER PLATE£3.89 Add to
5002450024SCREW£1.46 Add to
5012250122NUT£1.44 Add to
5013850138NUT£1.30 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5017950179WASHER£1.30 Add to
5018950189WASHER£1.34 Add to
5090150901SCREW£1.42 Add to
5094650946SCREW£1.36 Add to
5101251012NUT£1.54 Add to
5101551015NUT£1.34 Add to
5130351303INSULATING CAP£2.81 Add to
5646856468CLAMP£8.92 Add to
5646956469CLAMP£8.92 Add to
5655256552FUSE£2.48 Add to
5664356643IGNITION SWITCH£33.57 Add to
5665456654KEYS COUPLE£11.84 Add to
5666256662DRY BATTERY£128.27 Add to
5667156671MICRO-SWITCH£23.47 Add to
5667256672SMALL PLATE£4.03 Add to
5667556675FUSE£2.48 Add to
5668756687INSULATING CAP£2.31 Add to
5674556745RELAY£11.64 Add to
5679656796RELAY£45.01 Add to
