DRIVE LEVER (from sn 363301 to sn 385500 from 2006 to 2007)

Parts list

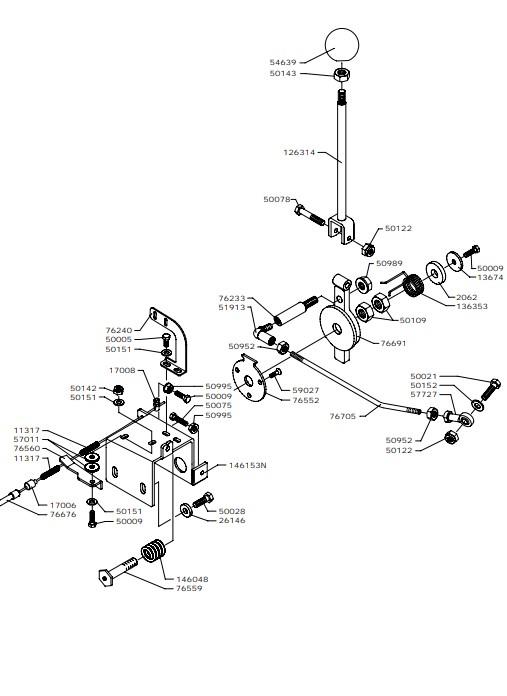

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1131711317SPRING£4.35 Add to
126314126314ROD£27.41 Add to
136353136353SPRING£3.93 Add to
1367413674WASHER£3.43 Add to
146048146048LEVER SPRING£8.58 Add to
1700617006BUSHING£51.96 Add to
1700817008BAFFLE-RR-CHUTE£44.26 Add to
20622062WASHER£3.77 Add to
2614626146WASHER£3.64 Add to
5000550005SHAFT -INPUT£1.53 Add to
5000950009SCREW£1.42 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5007550075SCREW£1.42 Add to
5007850078SCREW£1.69 Add to
5010950109NUT£1.52 Add to
5012250122NUT£1.44 Add to
5014250142NUT£1.32 Add to
5014350143NUT£1.44 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5095250952NUT£1.36 Add to
5098950989NUT£1.59 Add to
5099550995NUT£1.32 Add to
5191351913ARTICULATION£11.23 Add to
5463954639BALL£6.60 Add to
5701157011WASHER£1.30 Add to
5772757727CYLINDER HEAD£23.47 Add to
5902759027SCREW£1.41 Add to
7623376233EXTENSION£8.11 Add to
7655276552WASHER£7.67 Add to
7655976559PIN£12.37 Add to
7667676676BRAKES CABLE£5.75 Add to
7669176691LEVER£51.23 Add to
