DOUBLE BLADE CUTTER BAR 96 cm(from s/n 168897 from 1990)

Parts list

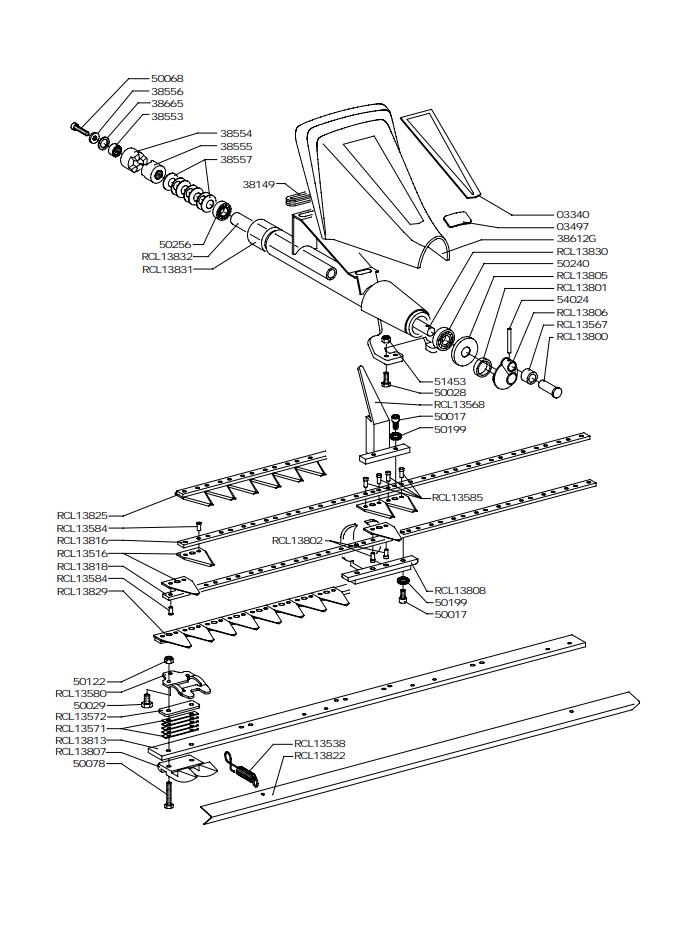

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0334003340STICKER£9.22 Add to
0349703497STICKER£2.95 Add to
3814938149BUFFER, HOOD COUPLING£6.06 Add to
3855338553BUSHING£9.48 Add to
3855438554COUPLING£53.05 Add to
3855538555COUPLING£39.88 Add to
3855638556WASHER£2.76 Add to
3855738557BELLEVILLE SPRING£3.26 Add to
38612G38612GGRASS CONVEYOR£49.59 Add to
3866538665SPACER£1.35 Add to
5001750017SCREW£1.44 Add to
5002850028SCREW£1.49 Add to
5002950029SCREW£1.61 Add to
5006850068SCREW£1.52 Add to
5007850078SCREW£1.69 Add to
5012250122NUT£1.44 Add to
5019950199WASHER£1.58 Add to
5024050240BEARING£12.73 Add to
5025650256BEARING£9.83 Add to
5145351453NUT£1.36 Add to
5402454024PIN£0.84 Add to
RCL13516RCL13516SECTION£3.44 Add to
RCL13538RCL13538SPRING£10.67 Add to
RCL13567RCL13567BUSHING£16.12 Add to
RCL13568RCL13568CONNECTION£61.95 Add to
RCL13571RCL13571SPACER£3.89 Add to
RCL13572RCL13572GUIDE£13.33 Add to
RCL13584RCL13584RIVET£1.85 Add to
RCL13585RCL13585DOWEL PIN£4.95 Add to
RCL13800RCL13800PIN£20.13 Add to
RCL13801RCL13801SPACER£32.10 Add to
RCL13802RCL13802RIVET£4.25 Add to
RCL13805RCL13805GUARD£54.10 Add to
RCL13806RCL13806SUPPORT£130.95 Add to
RCL13807RCL13807TOOTH£45.70 Add to
RCL13808RCL13808GUIDE£149.98 Add to
RCL13813RCL13813SICKLE BAR£152.33 Add to
RCL13816RCL13816ROD£44.33 Add to
RCL13818RCL13818ROD£42.87 Add to
RCL13825RCL13825CUTTING BLADE£138.83 Add to
RCL13829RCL13829CUTTING BLADE£154.34 Add to
RCL13830RCL13830SHAFT£115.19 Add to
RCL13831RCL13831FLANGE CONNECTION£223.20 Add to
RCL13832RCL13832SPACER£42.44 Add to
