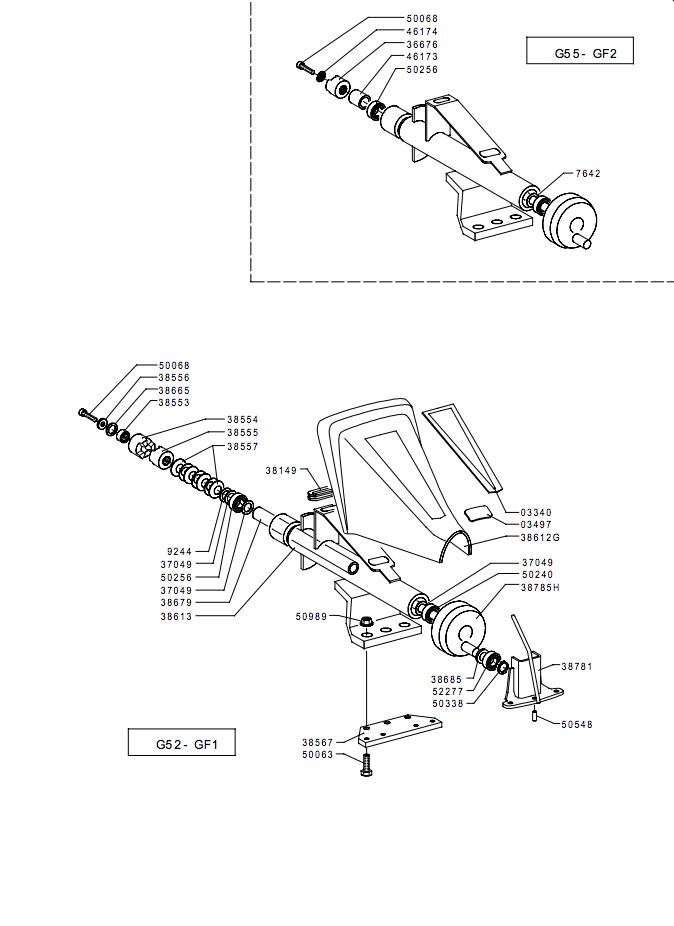

CUTTER BAR CENTRAL UNIT(from s/n 168897 from 1990)

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
03340	03340	STICKER	£9.22	Add to
03497	03497	STICKER	£2.95	Add to
36676	36676	COUPLING	£44.03	Add to
37049	37049	WASHER	£3.69	Add to
38149	38149	BUFFER, HOOD COUPLING	£6.06	Add to
38553	38553	BUSHING	£9.48	Add to
38554	38554	COUPLING	£53.05	Add to
38555	38555	COUPLING	£39.88	Add to
38556	38556	WASHER	£2.76	Add to
38557	38557	BELLEVILLE SPRING	£3.26	Add to
38612G	38612G	GRASS CONVEYOR	£49.59	Add to
38665	38665	SPACER	£1.35	Add to
38679	38679	SPACER	£17.50	Add to
38685	38685	SPACER	£3.08	Add to
38785H	38785H	SHAFT	£147.19	Add to
46173	46173	SPACER	£5.89	Add to
46174	46174	WASHER	£2.23	Add to
50063	50063	SCREW	£1.61	Add to
50068	50068	SCREW	£1.52	Add to
50240	50240	BEARING	£12.73	Add to
50256	50256	BEARING	£9.83	Add to
50338	50338	CIRCLIP	£1.42	Add to
50548	50548	PIN	£0.85	Add to
50989	50989	NUT	£1.59	Add to
52277	52277	BEARING	£17.71	Add to
7642	7642	SPACER	£1.87	Add to
9244	9244	SPACER	£1.92	Add to
