CUTTER BAR CENTRAL IN OIL BATH(from s/n 692483 from 2020)

Parts list

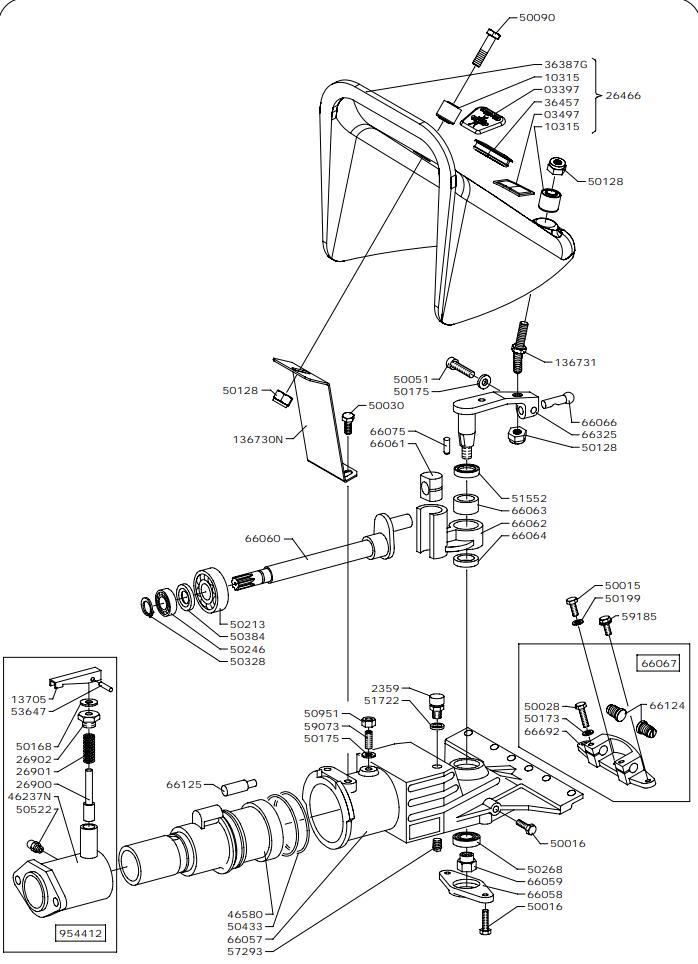

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0339703397STICKER£6.30 Add to
0349703497STICKER£2.95 Add to
1031510315SILENTBLOC£9.06 Add to
136730N136730NBRACKET£86.68 Add to
136731136731PIN£46.90 Add to
1370513705LEVER£7.55 Add to
23592359BREATHER CAP£11.31 Add to
2646626466GRASS CONVEYOR£108.08 Add to
2690026900PIN£22.62 Add to
2690126901SPRING£4.42 Add to
2690226902SCREW£7.40 Add to
36387G36387GGRASS CONVEYOR£67.13 Add to
3645736457PLUG£4.07 Add to
46237N46237NCONNECTION£158.91 Add to
4658046580FLANGE CONNECTION£288.74 Add to
5001550015SCREW£1.44 Add to
5001650016SCREW£18.80 Add to
5002850028SCREW£1.49 Add to
5003050030SCREW£1.64 Add to
5005150051SCREW£2.05 Add to
5009050090SCREW£2.09 Add to
5009050090SCREW£2.09 Add to
5012850128NUT£1.58 Add to
5016850168WASHER£1.45 Add to
5017350173WASHER£1.34 Add to
5017550175WASHER£1.42 Add to
5019950199WASHER£1.58 Add to
5021350213BEARING£35.25 Add to
5026850268BEARING£12.73 Add to
503034503034CONNECTION£98.25 Add to
5032850328CIRCLIP£1.44 Add to
5038450384SEAL RING£7.16 Add to
50433504330-RING£1.36 Add to
5052250522FITTING£2.27 Add to
5095150951SPACER£9.89 Add to
5155251552SEAL RING£7.40 Add to
5243852438BEARING£16.15 Add to
5364753647SPRING PIN£1.34 Add to
5907359073ALLEN SCREW£6.22 Add to
5918559185SCREW£1.49 Add to
6605766057GEARBOX£535.37 Add to
6605866058COVER£37.86 Add to
6605966059NUT£11.55 Add to
6606066060SHAFT£208.04 Add to
6606166061BUSHING£67.71 Add to
6606266062CRANK£143.48 Add to
6606366063BUSHING£19.59 Add to
6606466064BUSHING£6.12 Add to
6606666066PIN£54.36 Add to
6607566075FEATHER KEY£5.78 Add to
6612466124PLATE£16.27 Add to
6612566125PIN£6.44 Add to
6632566325FRONT ARM£218.98 Add to
