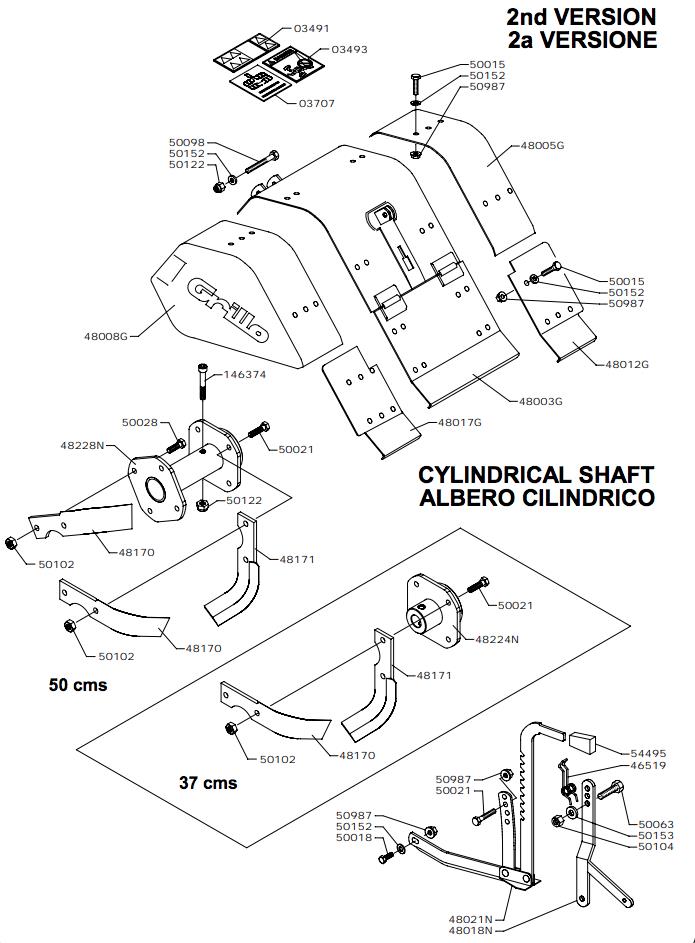

COVER & TILLER 50 cm - 2nd VERSION(from s/n 168897 from 1990)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0349103491STICKER£2.95 Add to
0349303493STICKER£2.95 Add to
146374146374SCREW£3.67 Add to
4651946519SPRING£6.53 Add to
48003G48003GCENTRAL CASING£195.38 Add to
48005G48005GSIDE£85.97 Add to
48008G48008GSIDE£85.97 Add to
48012G48012GGUARD£14.82 Add to
48017G48017GGUARD£14.82 Add to
48018N48018NROD£17.96 Add to
48021N48021NBLADE£45.44 Add to
4817048170TINE RH£5.25 Add to
4817148171TINE LH£5.25 Add to
48224N48224NHOES£44.51 Add to
48228N48228NHOES£50.06 Add to
5001550015SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5006350063SCREW£1.61 Add to
5009850098SCREW£1.97 Add to
5010250102NUT£1.36 Add to
5010450104NUT£1.44 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5098750987NUT£2.72 Add to
5449554495HANDLE£3.31 Add to
