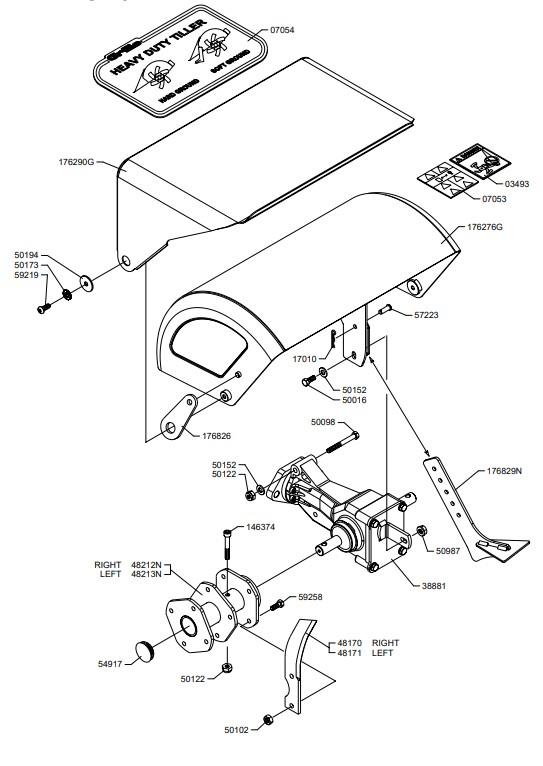

COVER AND TILLER 50CM (from sn 599726 to sn 644190 from 2015 to 2017)

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
03493	03493	STICKER	£2.95	Add to
07053	07053	STICKER	£5.32	Add to
146374	146374	SCREW	£3.67	Add to
17010	17010	SPLIT PIN	£1.99	Add to
176276G	176276G	HOOD	£244.50	Add to
176826	176826	RUBBER PAD	£5.85	Add to
176829N	176829N	MOTORHOE SPUR	£23.60	Add to
38881	38881	ROTARY HOE CENTRAL ASSEMBLY	£531.68	Add to
48170	48170	TINE RH	£5.25	Add to
48171	48171	TINE LH	£5.25	Add to
48212N	48212N	HOES	£57.56	Add to
48213N	48213N	HOES	£58.60	Add to
50016	50016	SCREW	£18.80	Add to
50098	50098	SCREW	£1.97	Add to
50102	50102	NUT	£1.36	Add to
50122	50122	NUT	£1.44	Add to
50152	50152	WASHER	£1.30	Add to
50173	50173	WASHER	£1.34	Add to
50194	50194	WASHER	£1.60	Add to
50987	50987	NUT	£2.72	Add to
54917	54917	PLUG	£2.52	Add to
57223	57223	PIN	£3.31	Add to
59219	59219	SCREW	£1.60	Add to
