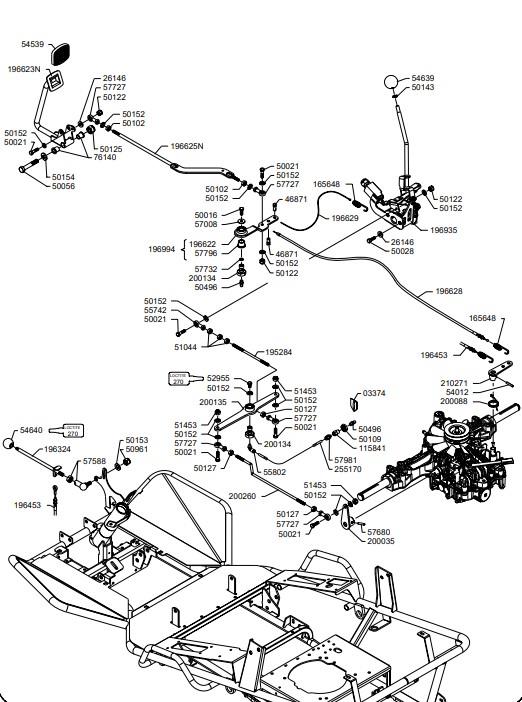

CONTROLS (from sn 677436 from 2019)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0337403374STICKER£7.57 Add to
115841115841PIPE REDUCTION£11.43 Add to
165648165648SPRING£22.77 Add to
195284195284ROD£4.81 Add to
196324196324LEVER£29.17 Add to
196453196453WIRE£50.03 Add to
196623N196623NPEDAL£47.30 Add to
196625N196625NROD£46.34 Add to
196628196628WIRE£12.99 Add to
196629196629WIRE£4.67 Add to
196994196994LEVER£39.40 Add to
200035200035LEVER£21.51 Add to
200088200088SPRING£12.90 Add to
200134200134PIN£16.62 Add to
200135200135LEVER£44.24 Add to
200260200260ROD£10.63 Add to
210271210271LEVER£17.59 Add to
255170255170PIPE£2.26 Add to
2614626146WASHER£3.64 Add to
4687146871CLAMP, CABLE£4.81 Add to
5001650016SCREW£18.80 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5005650056SCREW£2.51 Add to
5010250102NUT£1.36 Add to
5010950109NUT£1.52 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5012750127NUT£1.36 Add to
5014350143NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5015450154WASHER£1.37 Add to
5049650496FITTING£1.90 Add to
5096150961NUT£1.61 Add to
5104451044NUT£2.54 Add to
5145351453NUT£1.36 Add to
5295552955SCREW£1.59 Add to
5401254012PIN£1.71 Add to
5453954539DUST CAP£14.01 Add to
5463954639BALL£6.60 Add to
5464054640BALL£6.17 Add to
5574255742CYLINDER HEAD£9.70 Add to
5580255802ADAPTOR 90°£12.54 Add to
5700857008WASHER£1.35 Add to
5758857588ARTICULATION£11.18 Add to
5768057680PIN£0.54 Add to
5772757727CYLINDER HEAD£23.47 Add to
5773257732SPACER£2.21 Add to
5779657796BUSHING£8.62 Add to
5798157981FITTING£5.05 Add to
7614076140NYLON BUSHING£6.83 Add to
