BRAKES(from s/n 200251 from 1991)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

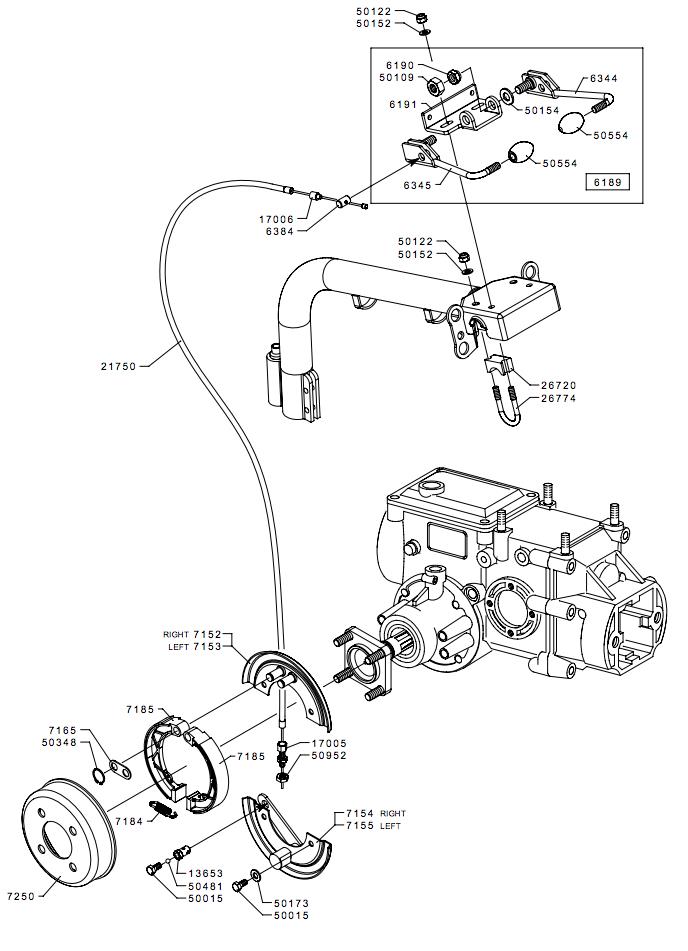

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1365313653CLAMP£4.27 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
2175021750WIRE£8.19 Add to
2672026720SUPPORT£3.64 Add to
2677426774HANDLEBAR U-BOLT£6.36 Add to
5001550015SCREW£1.44 Add to
5010950109NUT£1.52 Add to
5012250122NUT£1.44 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017350173WASHER£1.34 Add to
5034850348CIRCLIP£1.37 Add to
5048150481BALL£1.71 Add to
5055450554KNOB£6.00 Add to
5095250952NUT£1.36 Add to
61896189HANDLE BRAKE GROUP£91.19 Add to
61906190NUT£4.73 Add to
61916191SUPPORT£26.09 Add to
63446344HANDLE£26.35 Add to
63456345HANDLE£26.35 Add to
63846384CONNECTION£3.67 Add to
71527152PLATE£62.29 Add to
71537153PLATE£62.29 Add to
71547154PLATE£49.69 Add to
71557155PLATE£49.69 Add to
71657165SMALL PLATE£9.65 Add to
71847184SPRING£8.76 Add to
71857185BRAKE CALIPER£32.33 Add to
72507250BRAKE DRUM£79.09 Add to
