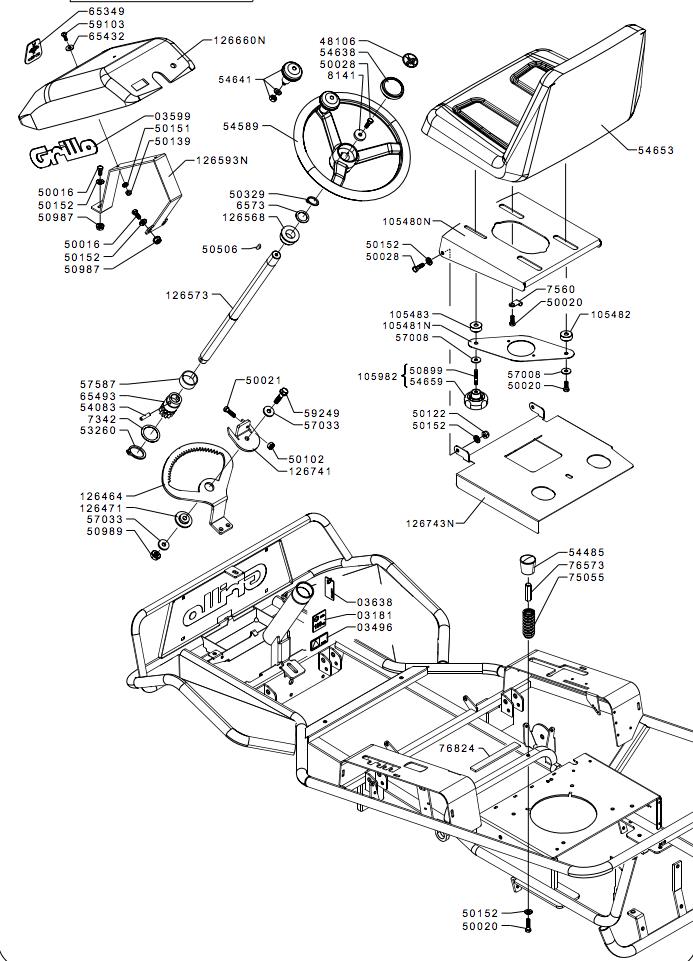

BODY, STEERING UNIT & SEAT(from s/n 304133 from 2003)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0318103181STICKER£3.55 Add to
0349603496STICKER£2.95 Add to
0359903599STICKER£10.62 Add to
105480N105480NSUPPORT£47.62 Add to
105482105482BUSHING£3.06 Add to
105483105483SPACER£2.95 Add to
126464126464SECTOR£60.15 Add to
126471126471BUSHING£8.32 Add to
126568126568BUSHING£25.17 Add to
4810648106STICKER£4.27 Add to
5001650016SCREW£18.80 Add to
5002050020SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5010250102NUT£1.36 Add to
5012250122NUT£1.44 Add to
5013950139NUT£1.34 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5032950329CIRCLIP£1.68 Add to
5050650506FEATHER KEY 5 X 7.5 UNI 6606£2.48 Add to
5089950899STUD£2.04 Add to
5098750987NUT£2.72 Add to
5098950989NUT£1.59 Add to
5326053260CIRCLIP£2.15 Add to
5408354083PIN£1.95 Add to
5448554485PLUG£3.09 Add to
5458954589STEERING WHEEL£79.57 Add to
5463854638PLUG£6.40 Add to
5464154641KNOB£7.22 Add to
5465354653SEAT£107.78 Add to
5700857008WASHER£1.35 Add to
5703357033WASHER£2.27 Add to
5758757587BUSHING£7.51 Add to
5924959249SCREW£2.21 Add to
5941159411SCREW£1.49 Add to
6534965349STICKER£5.61 Add to
6543265432RUBBER WASHER£1.97 Add to
6549365493PINION£58.02 Add to
65736573SPACER£2.70 Add to
73427342SPACER£2.42 Add to
7505575055SEAT SPRING£9.99 Add to
75607560FAIRLEAD£5.61 Add to
7657376573EXTENSION£3.28 Add to
7682476824TAPE£3.43 Add to
81418141WASHER£3.84 Add to
