ACTIVE CLUTCH HONDA GX390-VANGUARD 16HP (from sn 716040)

Parts list

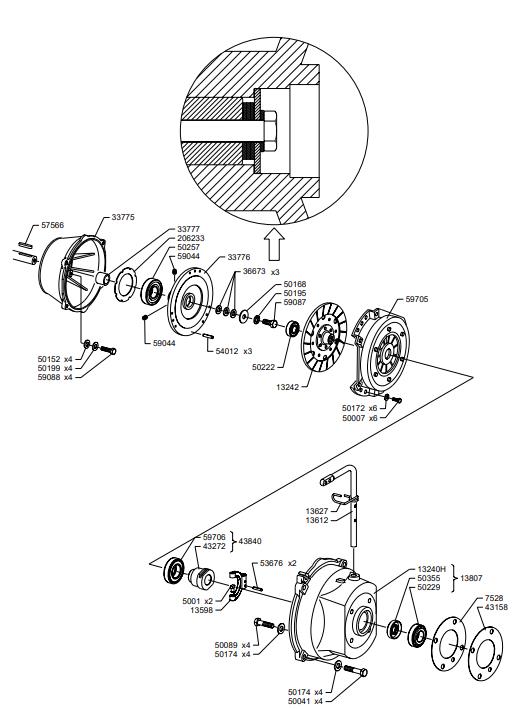

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1324213242CLUTCH PLATE£113.11 Add to
1359813598CLUTCH YOKE£39.56 Add to
1361213612CLUTCH LEVER£24.58 Add to
1362713627LEVER SPRING£7.98 Add to
206233206233RING£11.75 Add to
3377533775ENGINE BELL£213.78 Add to
3377633776FLYWHEEL£269.40 Add to
3377733777SPACER£10.90 Add to
3667336673SPACER£4.07 Add to
4315843158GASKET£2.97 Add to
4330543305CLUTCH HOUSING£148.86 Add to
4384043840COLLAR£78.66 Add to
5000750007SCREW£1.50 Add to
50015001DISK£5.36 Add to
5004150041SCREW£1.81 Add to
5008950089SCREW£1.85 Add to
5015250152WASHER£1.30 Add to
5016850168WASHER£1.45 Add to
5017250172WASHER£1.30 Add to
5017450174WASHER£1.50 Add to
5019550195WASHER£1.45 Add to
5019950199WASHER£1.58 Add to
5022250222BEARING£8.85 Add to
5022950229BEARING£36.54 Add to
5025750257BEARING£57.25 Add to
5035550355SEAL RING£2.95 Add to
5367653676SPRING PIN£2.31 Add to
5401254012PIN£1.71 Add to
5756657566FEATHER KEY£5.46 Add to
5904459044ALLEN SCREW£1.52 Add to
5908759087SCREW£3.84 Add to
5908859088SCREW£2.05 Add to
5970559705PRESSURE PLATE£124.87 Add to
5970659706BEARING£60.64 Add to
75287528GASKET£4.71 Add to
