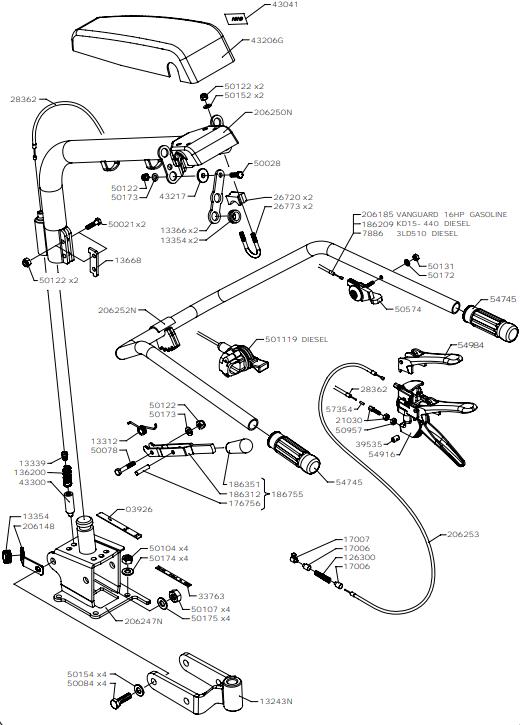

ACTIVE CLUTCH HANDLE (from sn 718270 from 2022)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0392603926STICKER£5.04 Add to
126300126300SPRING£9.06 Add to
13243N13243NDRAWBAR£86.01 Add to
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
1335413354RING£3.28 Add to
1336613366PLATE£6.84 Add to
136200136200SPRING£3.12 Add to
1366813668SMALL PLATE£5.34 Add to
1700617006BUSHING£51.96 Add to
176756176756PIN£3.23 Add to
186209186209WIRE£8.56 Add to
186312186312LEVER£19.85 Add to
186351186351KNOB£4.51 Add to
186755186755HANDLE£25.21 Add to
206185206185WIRE£21.10 Add to
206247N206247NSUPPORT£122.77 Add to
206250N206250NSTEERING COLUMN£117.12 Add to
206252N206252NHANDLEBAR£106.50 Add to
206253206253WIRE£10.96 Add to
2103021030ADJUSTER£3.67 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
2836228362WIRE£5.89 Add to
3376333763STICKER£5.49 Add to
3953639536CLAMP£1.40 Add to
4304143041STICKER£3.43 Add to
43206G43206GHANDLEBAR COVER£37.55 Add to
4321743217BUSHING£6.60 Add to
4330043300ROD£5.23 Add to
5002150021SCREW£1.46 Add to
500220500220CLAMP£1.63 Add to
5002850028SCREW£1.49 Add to
5007850078SCREW£1.69 Add to
5008450084SCREW£2.04 Add to
5010450104NUT£1.44 Add to
5010750107NUT£1.59 Add to
501119501119ACCELERATOR CONTROL LEVER£31.39 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017550175WASHER£1.42 Add to
5057550575ACCELERATOR CONTROL LEVER£8.11 Add to
5095750957NUT£1.34 Add to
5474554745HANDLE£5.77 Add to
5498454984LEVER£9.73 Add to
5735457354BOOT£1.60 Add to
78867886WIRE£8.54 Add to
