ACTIVE CLUTCH HANDLE(from s/n 560780 from 2012)

Parts list

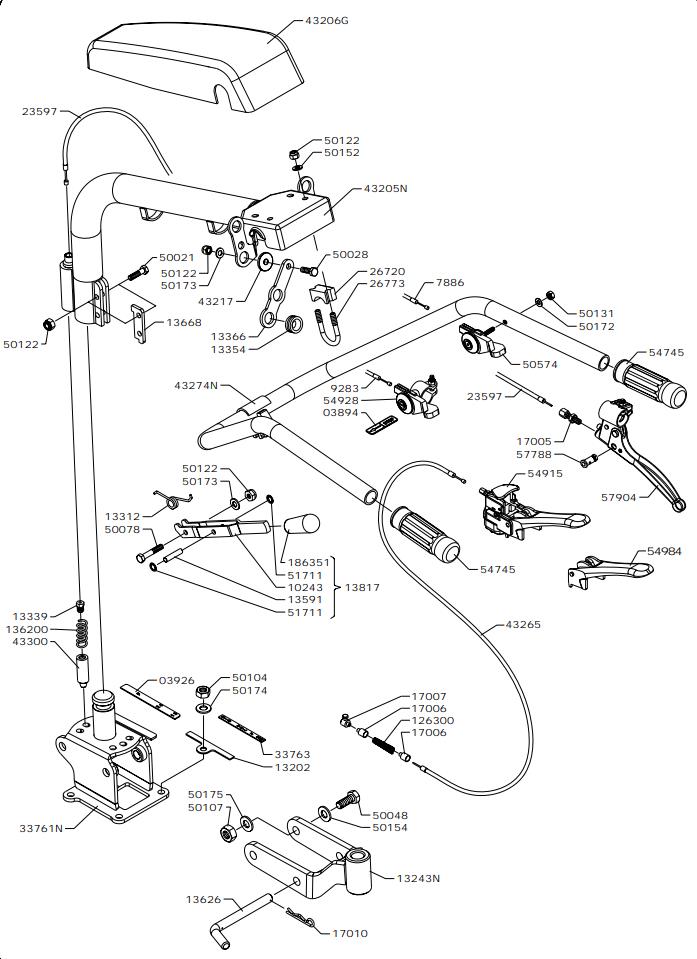

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0389403894STICKER£2.09 Add to
0392603926STICKER£5.04 Add to
1024310243LEVER£18.62 Add to
126300126300SPRING£9.06 Add to
1320213202SMALL PLATE£5.41 Add to
13243N13243NDRAWBAR£86.01 Add to
1331213312LEVER SPRING£4.64 Add to
1333913339PIN£2.87 Add to
1335413354RING£3.28 Add to
1336613366PLATE£6.84 Add to
1359113591PIN£3.57 Add to
136200136200SPRING£3.12 Add to
1362613626PIN£18.42 Add to
1366813668SMALL PLATE£5.34 Add to
1381713817HANDLE£22.88 Add to
1700517005ADJUSTER£5.27 Add to
1700617006BUSHING£51.96 Add to
1700717007CLAMP£2.61 Add to
1701017010SPLIT PIN£1.99 Add to
186351186351KNOB£4.51 Add to
2359723597WIRE£9.41 Add to
2672026720SUPPORT£3.64 Add to
2677326773HANDLEBAR U-BOLT£6.36 Add to
33761N33761NSUPPORT£127.39 Add to
3376333763STICKER£5.49 Add to
43205N43205NSTEERING COLUMN£111.35 Add to
43206G43206GHANDLEBAR COVER£37.55 Add to
4326543265WIRE£12.75 Add to
43274N43274NHANDLEBAR£95.61 Add to
4330043300ROD£5.23 Add to
5002150021SCREW£1.46 Add to
5002850028SCREW£1.49 Add to
5004850048SCREW£1.90 Add to
5007850078SCREW£1.69 Add to
5010450104NUT£1.44 Add to
5010750107NUT£1.59 Add to
5012250122NUT£1.44 Add to
5013150131NUT£1.32 Add to
5015250152WASHER£1.30 Add to
5015450154WASHER£1.37 Add to
5017250172WASHER£1.30 Add to
5017350173WASHER£1.34 Add to
5017450174WASHER£1.50 Add to
5017550175WASHER£1.42 Add to
5057450574ACCELERATOR CONTROL LEVER£8.74 Add to
5171151711RING£1.44 Add to
5474554745HANDLE£5.77 Add to
5491554915LEVER£23.89 Add to
5492854928ACCELERATOR CONTROL LEVER£13.37 Add to
5498454984LEVER£9.73 Add to
5778857788CLAMP£3.39 Add to
5790457904LEVER£41.00 Add to
78867886WIRE£8.54 Add to
92839283WIRE£5.41 Add to
