85 cm CUTTING DECK_BELT, TRANSMISSION & BLADE(from s/n 683870 from 2019)

Parts list

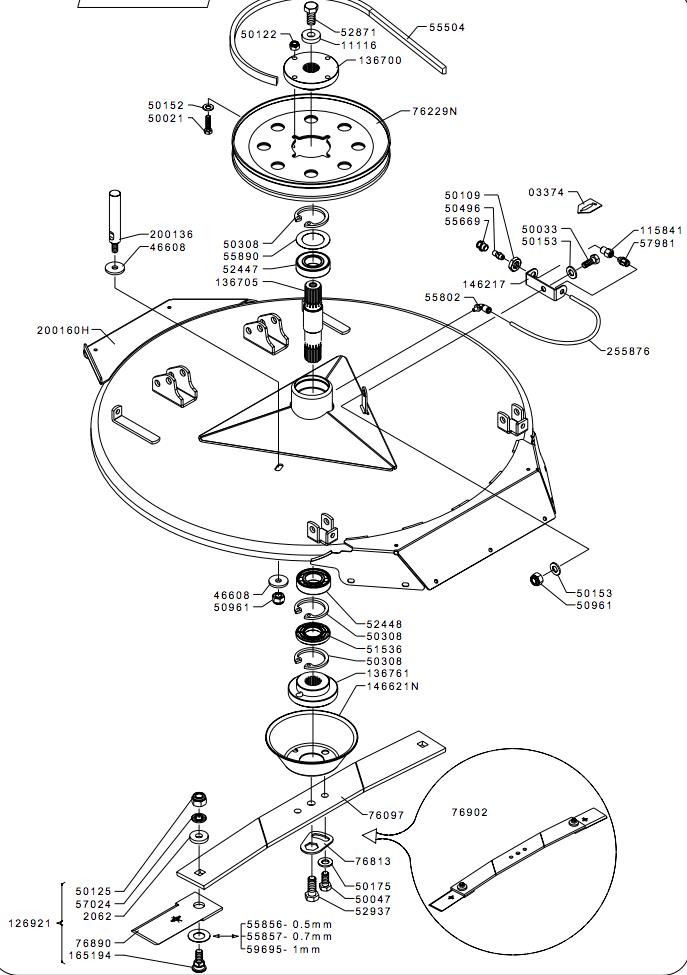

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0337403374STICKER£7.57 Add to
1111611116WASHER£2.91 Add to
115841115841PIPE REDUCTION£11.43 Add to
126921126921CUTTING BLADE£68.25 Add to
136700136700HUB£50.98 Add to
136705136705SHAFT£62.19 Add to
136761136761BLADE HOLDER HUB£37.75 Add to
146217146217BRACKET£6.55 Add to
146621N146621NHUB PROTECTION£14.93 Add to
165194165194BLADE PIN£12.47 Add to
200136200136GUIDE BELT£13.65 Add to
200160H200160HPLATE£489.61 Add to
20622062WASHER£3.77 Add to
255876255876PIPE£3.23 Add to
4660846608WASHER£3.44 Add to
5002150021SCREW£1.46 Add to
5003350033SCREW£1.66 Add to
5004750047SCREW£1.78 Add to
5010950109NUT£1.52 Add to
5012250122NUT£1.44 Add to
5012550125NUT£1.58 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5017550175WASHER£1.42 Add to
5030850308CIRCLIP£2.27 Add to
5049650496FITTING£1.90 Add to
5096150961NUT£1.61 Add to
5153651536SEAL RING£7.35 Add to
5244752447BEARING£18.18 Add to
5244852448BEARING£15.26 Add to
5287152871SCREW£2.72 Add to
5293752937SCREW£2.38 Add to
5550455504BELT£70.40 Add to
5566955669PLUG£1.68 Add to
5580255802ADAPTOR 90°£12.54 Add to
5585655856BELLEVILLE SPRING£3.39 Add to
5585755857BELLEVILLE SPRING£3.39 Add to
5589055890SPACER£2.29 Add to
5702457024WASHER£1.49 Add to
5798157981FITTING£5.05 Add to
5969559695BELLEVILLE SPRING£2.52 Add to
7609776097CENTRAL CASING£47.07 Add to
76229N76229NPULLEY£67.78 Add to
7681376813SMALL PLATE£5.24 Add to
7689076890CUTTING BLADE£19.98 Add to
7690276902CUTTING BLADE£114.03 Add to
