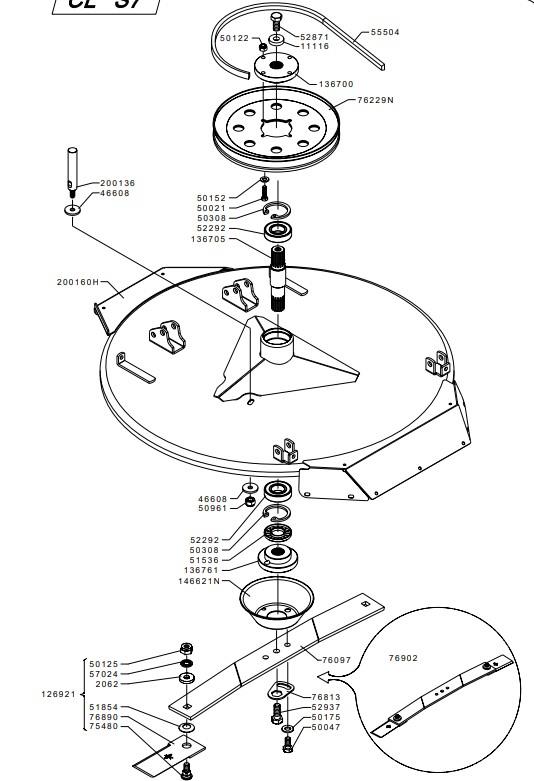

85 CM CUTTING DECK BELT TRANSMISSION AND BLADE (from sn 585775 to sn 662367)

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
11116	11116	WASHER	£2.91	Add to
126921	126921	CUTTING BLADE	£68.25	Add to
136700	136700	HUB	£50.98	Add to
136705	136705	SHAFT	£62.19	Add to
136761	136761	BLADE HOLDER HUB	£37.75	Add to
146621N	146621N	HUB PROTECTION	£14.93	Add to
200136	200136	GUIDE BELT	£13.65	Add to
200160H	200160H	PLATE	£489.61	Add to
2062	2062	WASHER	£3.77	Add to
46608	46608	WASHER	£3.44	Add to
50021	50021	SCREW	£1.46	Add to
50047	50047	SCREW	£1.78	Add to
50122	50122	NUT	£1.44	Add to
50125	50125	NUT	£1.58	Add to
50152	50152	WASHER	£1.30	Add to
50175	50175	WASHER	£1.42	Add to
50308	50308	CIRCLIP	£2.27	Add to
50961	50961	NUT	£1.61	Add to
51536	51536	SEAL RING	£7.35	Add to
51854	51854	BELLEVILLE SPRING	£2.60	Add to
52292	52292	BEARING	£18.71	Add to
52871	52871	SCREW	£2.72	Add to
52937	52937	SCREW	£2.38	Add to
55504	55504	BELT	£70.40	Add to
57024	57024	WASHER	£1.49	Add to
75480	75480	BLADE PIN	£11.58	Add to
76097	76097	CENTRAL CASING	£47.07	Add to
76229N	76229N	PULLEY	£67.78	Add to
76813	76813	SMALL PLATE	£5.24	Add to
76890	76890	CUTTING BLADE	£19.98	Add to
76902	76902	CUTTING BLADE	£114.03	Add to
