65-75 cm GRASS CUTTER WITH BRAKE(from sn 228001from 1996)(z=15 e Z=18)

Parts list

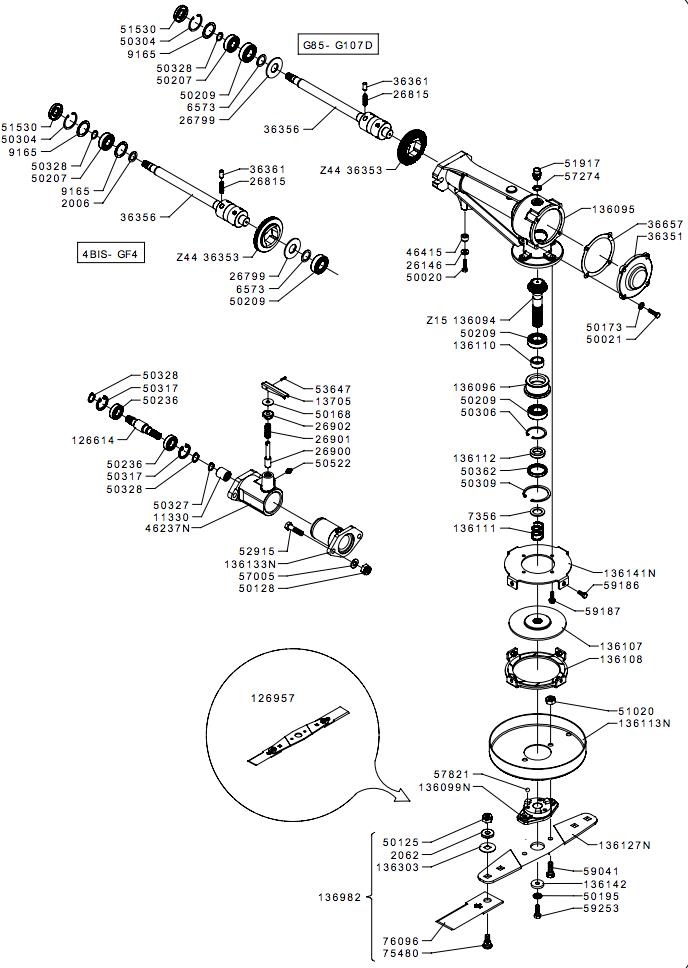

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
1133011330BUSHING£21.99 Add to
126614126614SHAFT£49.69 Add to
136094136094PINION£95.28 Add to
136095136095GEARBOX£375.17 Add to
136096136096BUSHING£50.87 Add to
136099N136099NBLADE HOLDER HUB£121.58 Add to
136107136107COULPING£92.08 Add to
136108136108SUPPORT£62.18 Add to
136110136110SPACER£5.99 Add to
136111136111BRAKE SPRING£3.94 Add to
136112136112RING£24.34 Add to
136133N136133NFLANGE CONNECTION£74.98 Add to
136141N136141NBRACKET£35.47 Add to
136142136142WASHER£4.71 Add to
136303136303SPACER£2.57 Add to
136982136982CUTTING BLADE£65.58 Add to
1370513705LEVER£7.55 Add to
20062006SPACER£4.15 Add to
20622062WASHER£3.77 Add to
2614626146WASHER£3.64 Add to
2679926799WASHER£8.24 Add to
2681526815SPRING£4.89 Add to
2690026900PIN£22.62 Add to
2690126901SPRING£4.42 Add to
2690226902SCREW£7.40 Add to
3635336353RING GEAR£106.27 Add to
3635636356SHAFT£185.95 Add to
3636136361PIN£5.86 Add to
3665736657GASKET£3.89 Add to
46237N46237NCONNECTION£158.91 Add to
4641546415SPACER£3.73 Add to
5002050020SCREW£1.44 Add to
5002150021SCREW£1.46 Add to
5012550125NUT£1.58 Add to
5012850128NUT£1.58 Add to
5016850168WASHER£1.45 Add to
5017350173WASHER£1.34 Add to
5019550195WASHER£1.45 Add to
5020750207BEARING£8.85 Add to
5020950209BEARING£15.55 Add to
5023650236BEARING£14.72 Add to
5030450304CIRCLIP£2.09 Add to
5030650306CIRCLIP£2.31 Add to
5030950309CIRCLIP£2.97 Add to
5031750317CIRCLIP£1.97 Add to
5032750327CIRCLIP£1.40 Add to
5032850328CIRCLIP£1.44 Add to
5036250362SEAL RING£4.85 Add to
5052250522FITTING£2.27 Add to
5102051020NUT£1.58 Add to
5153051530SEAL RING£5.33 Add to
5191751917PLUG£10.71 Add to
5291552915SCREW£1.99 Add to
5364753647SPRING PIN£1.34 Add to
5700557005WASHER£1.60 Add to
5727457274WASHER£1.47 Add to
5782157821BALL£1.74 Add to
5904159041SCREW£2.42 Add to
5925359253SCREW£2.09 Add to
65736573SPACER£2.70 Add to
73567356SPACER£4.38 Add to
7548075480BLADE PIN£11.58 Add to
7609676096CUTTING BLADE£19.44 Add to
91659165SPACER£3.41 Add to
