62 CM CUTTING DECK TRANSMISSION AND BLADE (from sn 656193 from 2018)

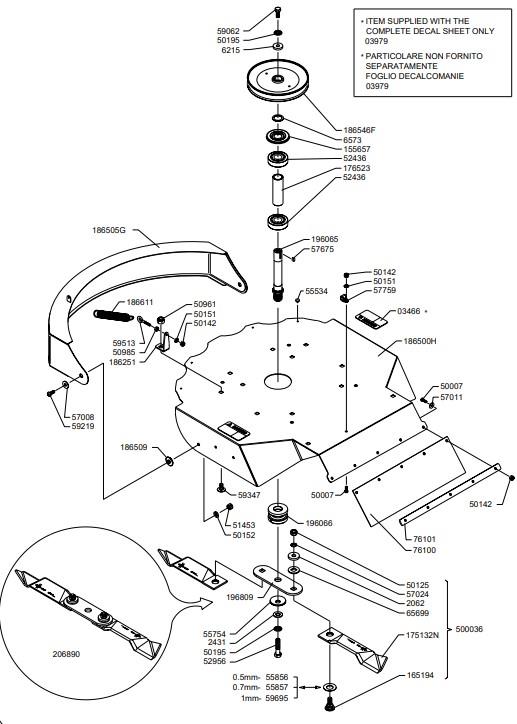

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0397903979STICKER£21.51 Add to
155657155657GUARD£4.83 Add to
165194165194BLADE PIN£12.47 Add to
175132N175132NCUTTING BLADE£35.66 Add to
176523176523SPACER£13.42 Add to
186500H186500HCUTTER DECK£214.94 Add to
186505G186505GMOWER DECK DOOR£91.19 Add to
186509186509BUSHING£7.16 Add to
186546F186546FPULLEY£66.29 Add to
186611186611SPRING£13.43 Add to
196065196065SHAFT£54.55 Add to
196809196809CENTRAL CASING£13.66 Add to
20622062WASHER£3.77 Add to
206890206890CUTTING BLADE£131.51 Add to
24312431WASHER£4.07 Add to
500036500036CUTTING BLADE£117.85 Add to
5000750007SCREW£1.50 Add to
5012550125NUT£1.58 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5019550195WASHER£1.45 Add to
5096150961NUT£1.61 Add to
5098550985NUT£1.30 Add to
5145351453NUT£1.36 Add to
5243652436BEARING£21.23 Add to
5295652956SCREW£0.82 Add to
5553455534SHOCK ABSORBER£0.89 Add to
5575455754BELLEVILLE SPRING£6.41 Add to
5585655856BELLEVILLE SPRING£3.39 Add to
5585755857BELLEVILLE SPRING£3.39 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5702457024WASHER£1.49 Add to
5767557675FEATHER KEY£1.32 Add to
5775957759CLAMP£4.01 Add to
5906259062SCREW£1.71 Add to
5921959219SCREW£1.60 Add to
5934759347SCREW£0.79 Add to
5951359513ROD£3.81 Add to
5969559695BELLEVILLE SPRING£2.52 Add to
62156215WASHER£4.15 Add to
6569965699WASHER£1.35 Add to
65736573SPACER£2.70 Add to
7610076100GUARD PLATE£30.05 Add to
7610176101BRACKET£12.45 Add to
