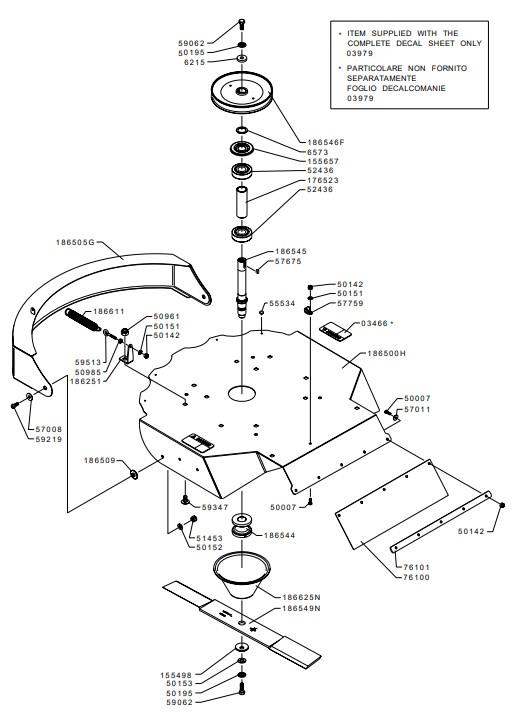

62 CM CUTTING DECK TRANSMISSION AND BLADE (from sn 577726 from 2014)

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0397903979STICKER£21.51 Add to
155498155498BELLEVILLE SPRING£7.22 Add to
155657155657GUARD£4.83 Add to
176523176523SPACER£13.42 Add to
186500H186500HCUTTER DECK£214.94 Add to
186505G186505GMOWER DECK DOOR£91.19 Add to
186509186509BUSHING£7.16 Add to
186544186544BLADE HOLDER HUB£22.64 Add to
186545186545SHAFT£64.49 Add to
186546F186546FPULLEY£66.29 Add to
186549N186549NCUTTING BLADE£90.38 Add to
186611186611SPRING£13.43 Add to
186625N186625NHUB PROTECTION£39.51 Add to
5000750007SCREW£1.50 Add to
5014250142NUT£1.32 Add to
5015150151WASHER£1.28 Add to
5015250152WASHER£1.30 Add to
5015350153WASHER£1.34 Add to
5019550195WASHER£1.45 Add to
5096150961NUT£1.61 Add to
5098550985NUT£1.30 Add to
5145351453NUT£1.36 Add to
5243652436BEARING£21.23 Add to
5553455534SHOCK ABSORBER£0.89 Add to
5700857008WASHER£1.35 Add to
5701157011WASHER£1.30 Add to
5767557675FEATHER KEY£1.32 Add to
5775957759CLAMP£4.01 Add to
5906259062SCREW£1.71 Add to
5921959219SCREW£1.60 Add to
5934759347SCREW£0.79 Add to
5951359513ROD£3.81 Add to
62156215WASHER£4.15 Add to
65736573SPACER£2.70 Add to
7610076100GUARD PLATE£30.05 Add to
7610176101BRACKET£12.45 Add to
