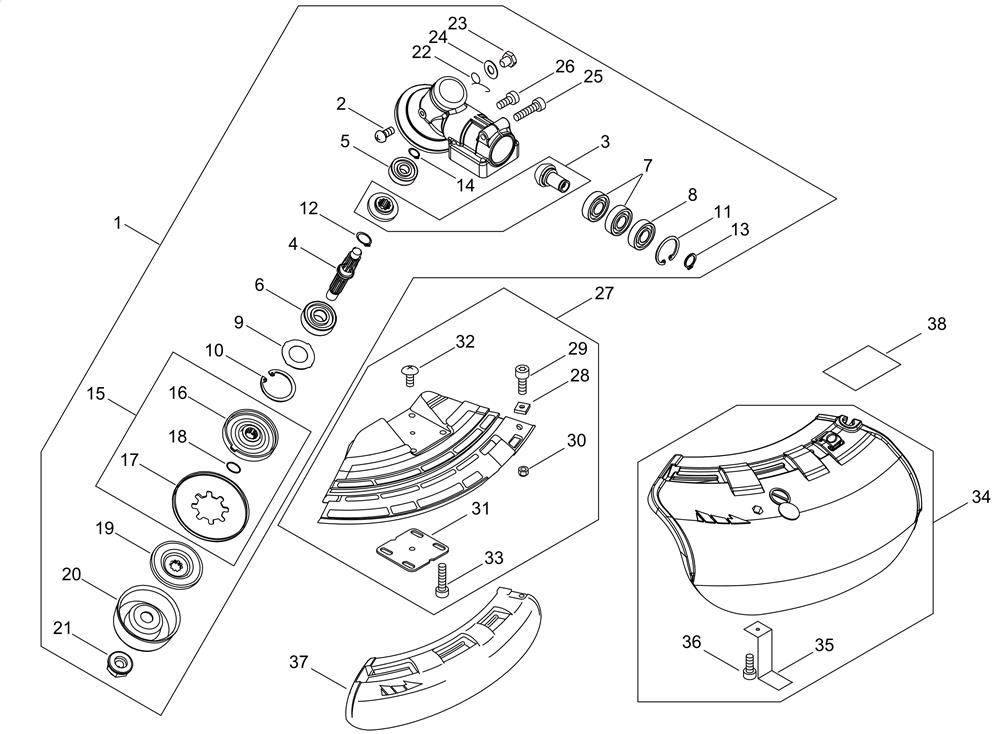

GEAR CASE, SHIELD

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P021-043970CASE , GEAR£207.41 Add to
002EC-900220-04006SCREW£1.47 Add to
004EC-C534-000940SHAFT , GEAR£40.24 Add to
005EC-900810-00629BEARING BALL£14.88 Add to
007EC-900800-06001BEARING , BALL£8.77 Add to
008EC-900803-06001BEARING , BALL£8.77 Add to
010EC-900702-00042RETAINING RING£2.86 Add to
011EC-900702-00028CIRCLIP£2.17 Add to
012EC-900706-00012RETAINING RING£2.16 Add to
013EC-900701-00012CIRCLIP£1.61 Add to
015EC-C535-000920FIXTURE , BLADE£21.12 Add to
016EC-C535-000930FIXTURE , BLADE£22.64 Add to
017EC-610352-56830PLATE CUP£8.16 Add to
018EC-900720-00012O-RING£2.17 Add to
019EC-610314-52130PLATE , ADAPTER (L)£16.53 Add to
020EC-699229-56830PLATE , COVER£8.90 Add to
021EC-610320-52130NUT 10£4.32 Add to
022EC-V452-001310SPRING , TORSION£7.25 Add to
023EC-610434-50031BOLT£4.32 Add to
024EC-900603-50008WASHER£1.47 Add to
026EC-V805-000130BOLT£2.66 Add to
027EC-P021-050810SHIELD BLADE ASY£28.75 Add to
028EC-900565-00005NUT£1.47 Add to
029EC-V805-000170BOLT, TORX 5£2.66 Add to
030EC-900562-00005NUT , LOCK£2.52 Add to
031EC-C552-000200PLATE , SHIELD£4.32 Add to
032EC-91316-04010SCREW£1.47 Add to
033EC-V805-000260BOLT , TORX 5£2.66 Add to
034EC-P021-043982SHIELD ASY , BLADE£39.44 Add to
035EC-C554-000002KNIFE CORD£14.88 Add to
036EC-V805-000150BOLT, TORX 5£2.66 Add to
037EC-C550-000541SHIELD , BLADE£19.29 Add to
