GEAR CASE, SHIELD

Parts list

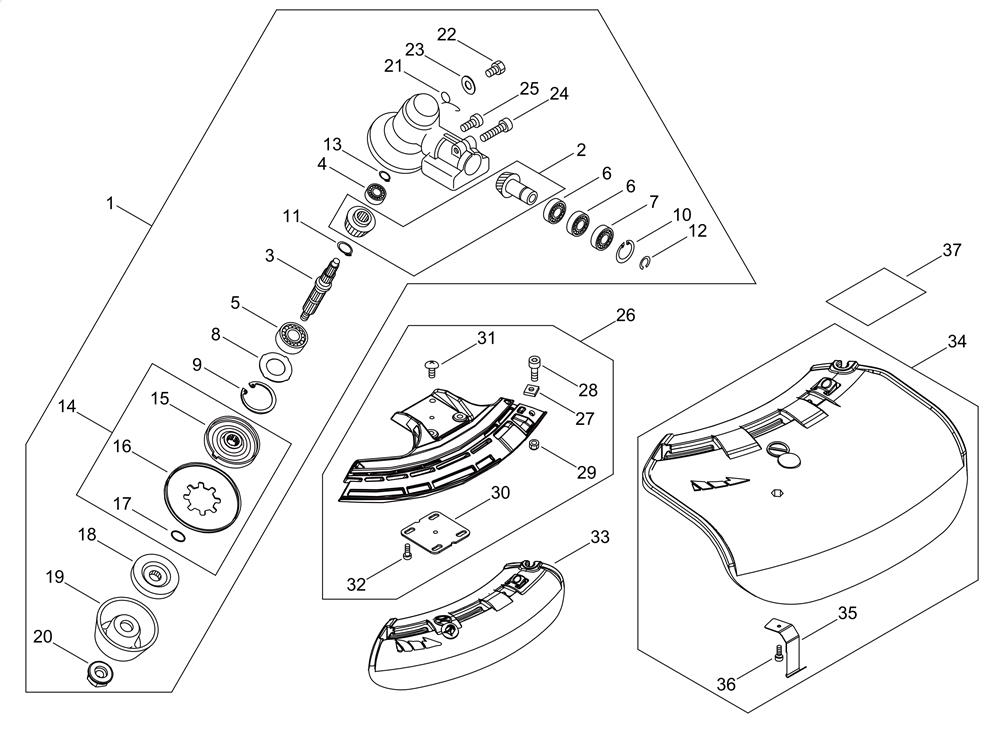

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P021-051190GEAR CASE ASY£180.48 Add to
002EC-V000-000110GEAR SET , BEVEL£63.26 Add to
003EC-C534-000940SHAFT , GEAR£40.24 Add to
004EC-900810-00629BEARING BALL£14.88 Add to
006EC-900855-06900BEARING , BALL£12.26 Add to
007EC-900858-06900BEARING , BALL£9.51 Add to
009EC-900702-00042RETAINING RING£2.86 Add to
010EC-900702-00022RETAINING RING£2.16 Add to
011EC-900706-00012RETAINING RING£2.16 Add to
012EC-900706-00010RETAINING RING£2.16 Add to
014EC-P100-010910FIXTURE , BLADE SET£31.07 Add to
015EC-C535-000930FIXTURE , BLADE£22.64 Add to
016EC-610352-56830PLATE CUP£8.16 Add to
017EC-900720-00012O-RING£2.17 Add to
018EC-610314-52130PLATE , ADAPTER (L)£16.53 Add to
019EC-699229-56830PLATE , COVER£8.90 Add to
020EC-610320-52130NUT 10£4.32 Add to
021EC-V452-001310SPRING , TORSION£7.25 Add to
022EC-610434-50031BOLT£4.32 Add to
023EC-900603-50008WASHER£1.47 Add to
024EC-V806-000020BOLT TORX 6£2.66 Add to
025EC-V805-000130BOLT£2.66 Add to
026EC-P100-010520SHIELD£39.44 Add to
027EC-900565-00005NUT£1.47 Add to
028EC-V805-000170BOLT, TORX 5£2.66 Add to
029EC-900562-00005NUT , LOCK£2.52 Add to
030EC-C552-000200PLATE , SHIELD£4.32 Add to
031EC-91316-04010SCREW£1.47 Add to
032EC-V805-000260BOLT , TORX 5£2.66 Add to
033EC-C550-000541SHIELD , BLADE£19.29 Add to
034EC-P021-042900SHIELD ASY , BLADE£39.44 Add to
035EC-C554-000030KNIFE , CORD£14.57 Add to
036EC-V805-000150BOLT, TORX 5£2.66 Add to
