GEAR CASE

Parts list

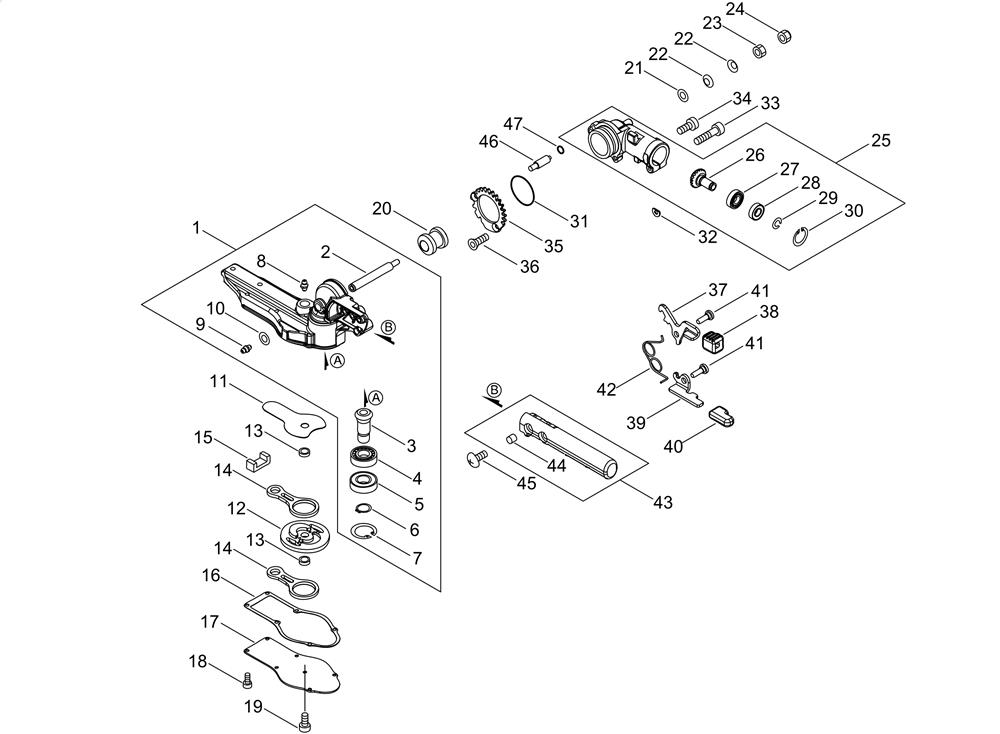

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001EC-P100-004080CASE , GEAR ASY£161.32 Add to
002EC-C534-001010SHAFT , GEAR£41.46 Add to
003EC-V655-000090SHAFT , PINION£42.39 Add to
004EC-900800-36002BEARING , BALL 6002£9.69 Add to
005EC-94004-36002BEARING , BALL£6.93 Add to
006EC-900701-00014CIRCLIP 14£1.61 Add to
007EC-900702-00032RETAINING RING£2.66 Add to
008EC-V187-000080GREASE NIPPLE£2.30 Add to
009EC-V187-000080GREASE NIPPLE£2.30 Add to
010EC-900603-00006WASHER£1.47 Add to
011EC-V150-003941PLATE , EYE£5.85 Add to
012EC-V650-000661GEAR , SPUR£30.89 Add to
013EC-V356-000730COLLAR , 10£5.42 Add to
014EC-C532-000360ROD , CONNECTING£10.31 Add to
015EC-V541-000570SEAL£2.86 Add to
016EC-V110-000180GASKET , GEAR CASE£6.45 Add to
017EC-C539-000160LID , GEAR CASE£13.97 Add to
018EC-V804-000110BOLT , TORX 4£2.16 Add to
019EC-V805-000300BOLT, TORX 5£2.66 Add to
020EC-P021-047570GEAR , BEVEL SET£38.34 Add to
021EC-900603-00006WASHER£1.47 Add to
022EC-V347-000030CONE WASHER£1.81 Add to
023EC-900502-00006NUT 6 (3N)£1.47 Add to
024EC-900560-00006NUT , LOCK£2.42 Add to
025EC-P021-047820CASE ASY , GEAR£117.19 Add to
026EC-V651-001000GEAR , BEVEL£33.34 Add to
027EC-900855-06901BEARING , BALL 6901£12.75 Add to
028EC-900859-06901BEARING , BALL 6901£20.20 Add to
029EC-900706-00012RETAINING RING£2.16 Add to
030EC-900702-00024RETAINING RING£2.16 Add to
031EC-900724-00035O-RING£2.91 Add to
033EC-V805-000170BOLT, TORX 5£2.66 Add to
034EC-V805-000130BOLT£2.66 Add to
035EC-C465-000030RESSETER , LATCH£31.69 Add to
036EC-900175-05012BOLT , H.S.H£1.96 Add to
037EC-C661-000150LEVER£10.72 Add to
038EC-V494-000880CAP£5.85 Add to
039EC-C661-000080SAFETY LEVER£10.72 Add to
040EC-V494-000891CAP£5.85 Add to
041EC-V204-000580PIN , RATCHET£3.71 Add to
042EC-V452-000710COIL SPRING£3.35 Add to
043EC-C403-000480HANDLE£5.96 Add to
046EC-C226-000060PIN , CONTROL£4.20 Add to
047EC-900720-00005O-RING£1.96 Add to
